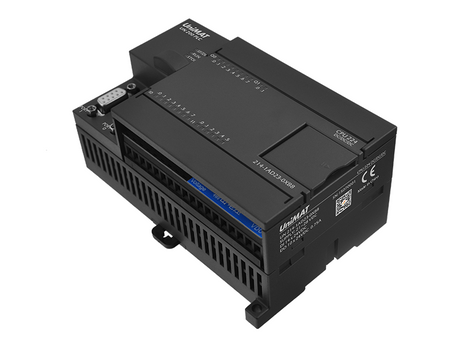

UN 200 series small PLC is suitable for many industries, and satisfy the control requirement of medium and small scale system, cover the relevant auto-inspection, automation control industry and civil field. PLC 200 have a perfect performance, rich instruction set, good expansion and high costefficient.

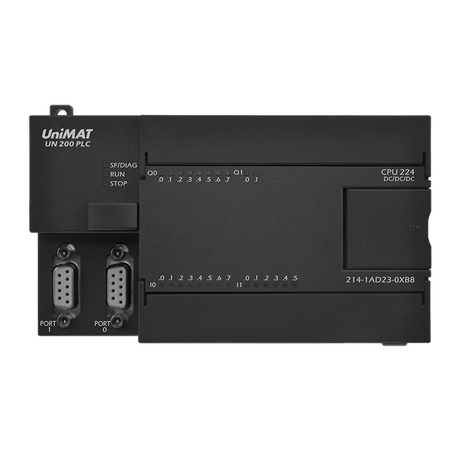

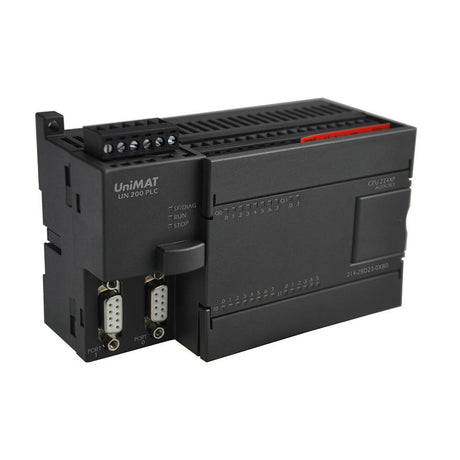

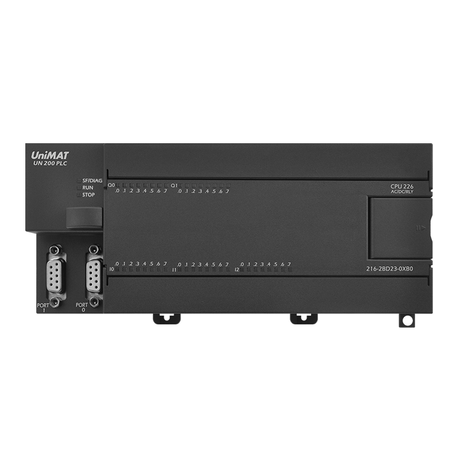

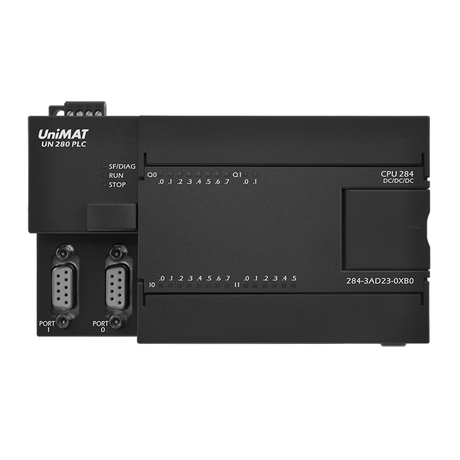

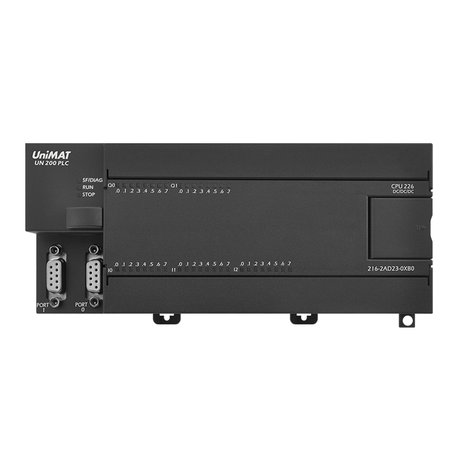

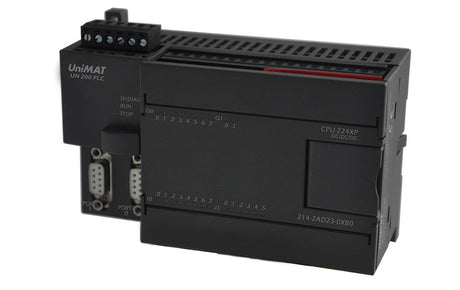

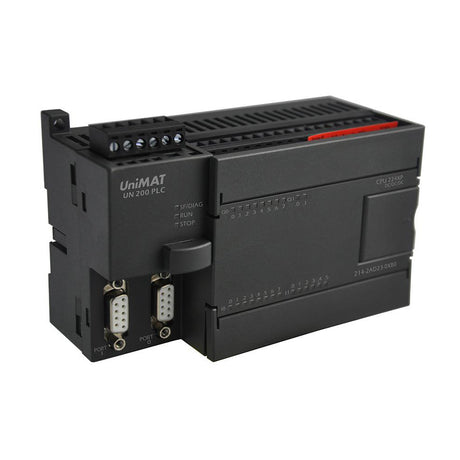

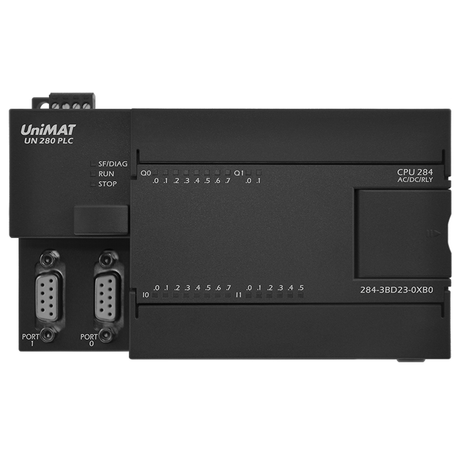

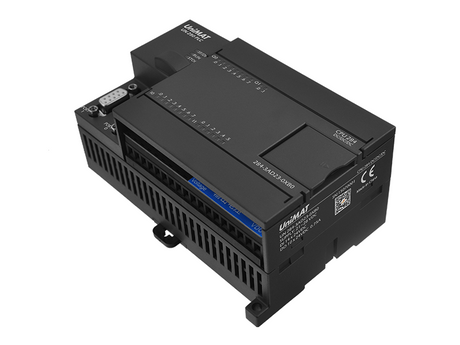

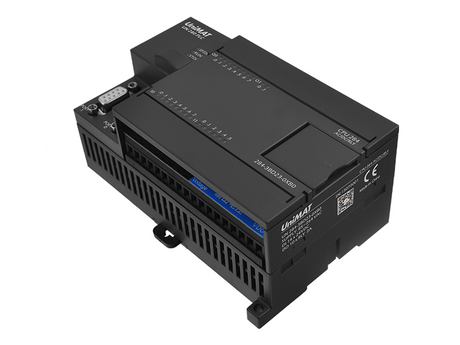

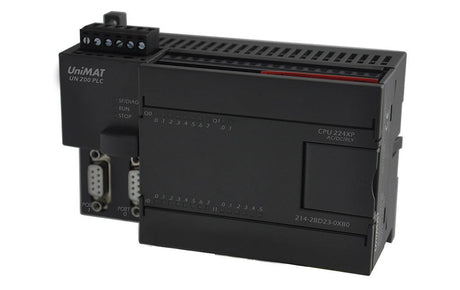

UN 200 SERIES PLC

Small size PLC

Fast processing speed
Program space 20-40K, data space 10K
14-24 digital inputs, 10-16 digital outputs.
6 single-phase 30KHz, 4 AB phase 20KHz
Power-off data retention
PID adjustment control panel
2 30KHz high-speed pulse outputs
2 RS485 interfaces

PLC 200 applied in a variety of industries, can meet various control function requirements of small and medium-sized systems. Covers industrial and civil fields related to automatic detection and automatic control

Small PLC Features

  • High-speed instruction execution and data processing capabilities support AES iterative encryption technology to protect user programs and intellectual property rights.

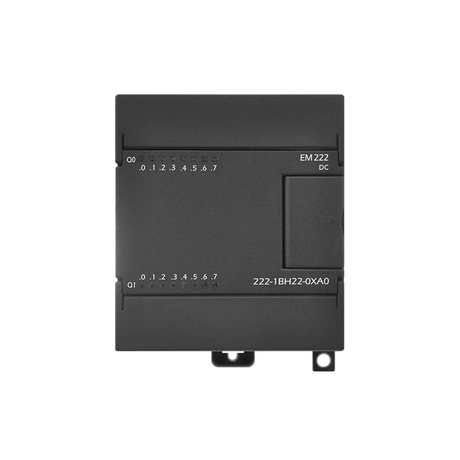

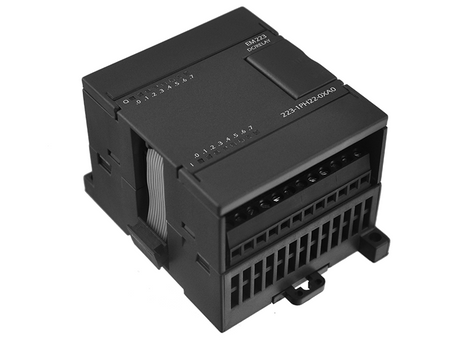

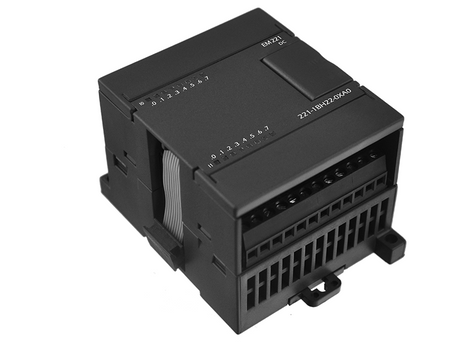

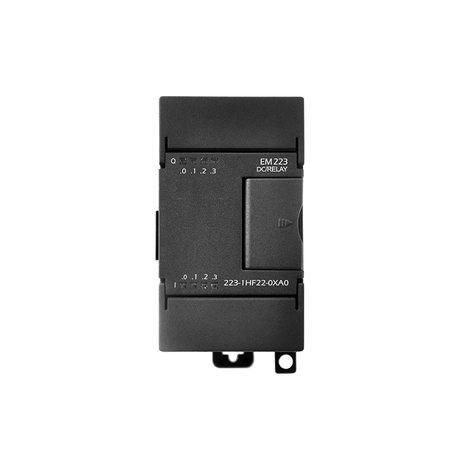

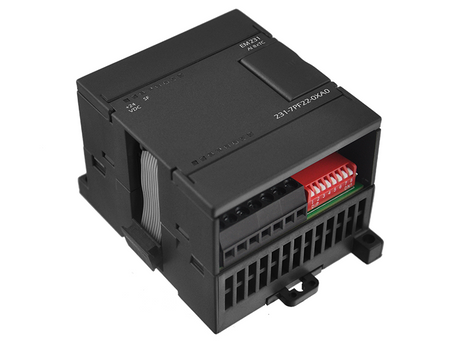

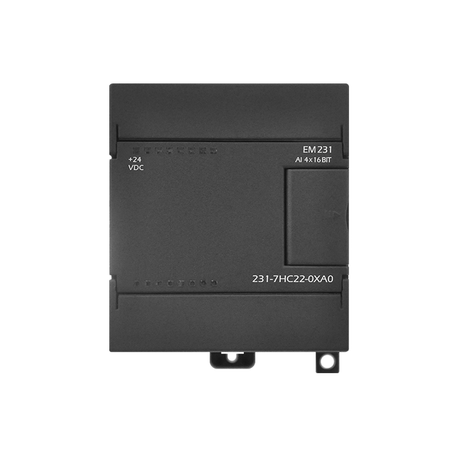

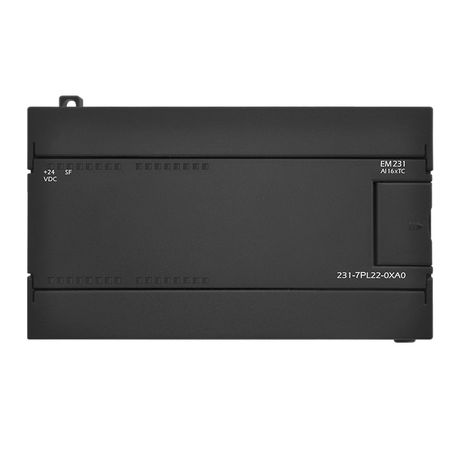

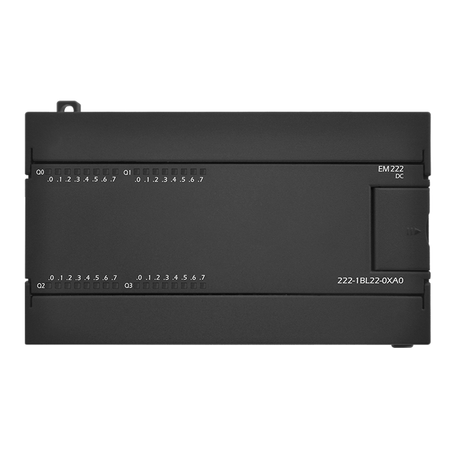

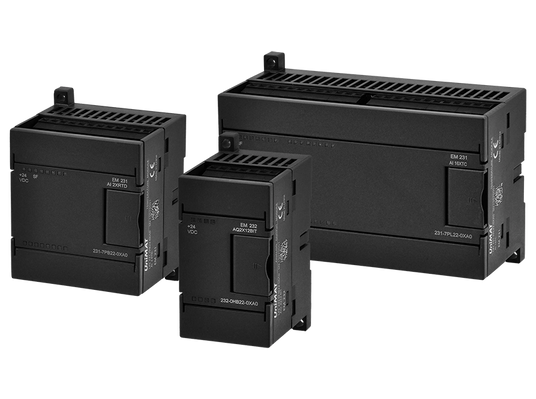

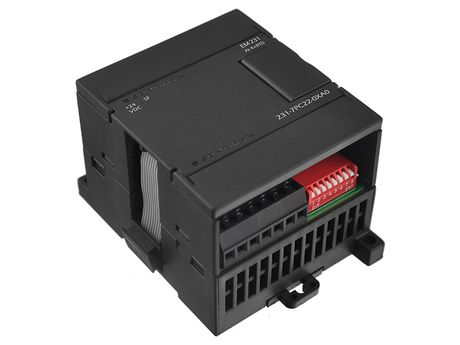

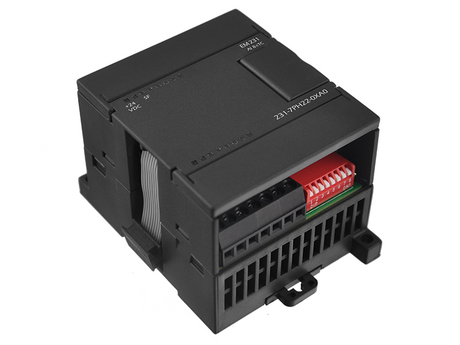

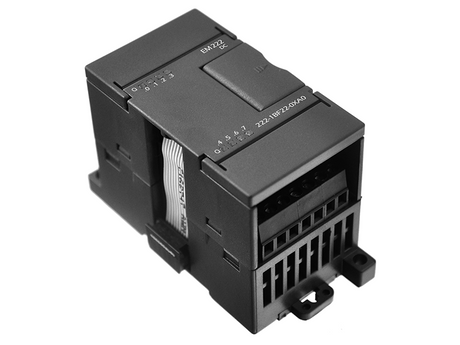

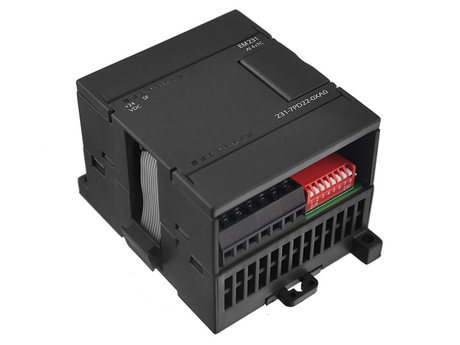

  • The program space is 20~24K and the data space is 10K. Supports battery card memory card function, and can be expanded to a maximum of 7 I/O expansion modules.

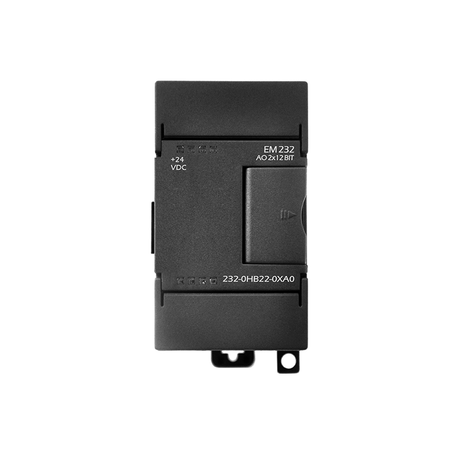

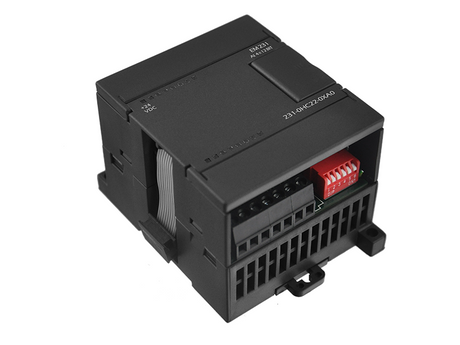

  • Small PLC integrates 14~24 digital inputs and 10~16 digital outputs. Part of the body integrates 2AI/1AO analog.

  • Small PLC supports 6 channels of single-phase 30KHz and 4 channels of AB phase 20KHz high-speed counting. Some support 200KHz single-phase and 100KHz bi-phase counting.

  • Small PLC supports the industry-leading permanent data retention function without additional battery support and can store power0off data for up to 10 years.

  • PLC 200 supports PID adjustment control panel, and the more optimized PID self-tuning control algorithm allows users to quickly obtain PID parameters, with up to 32 PID control loops.The baud rate is up to 187.5ksps.

  • PLC 200 supports Siemens and UniMAT independent MODBUS-RTU dual communication library functions
