UN 221-1BF22-0XA0
Description

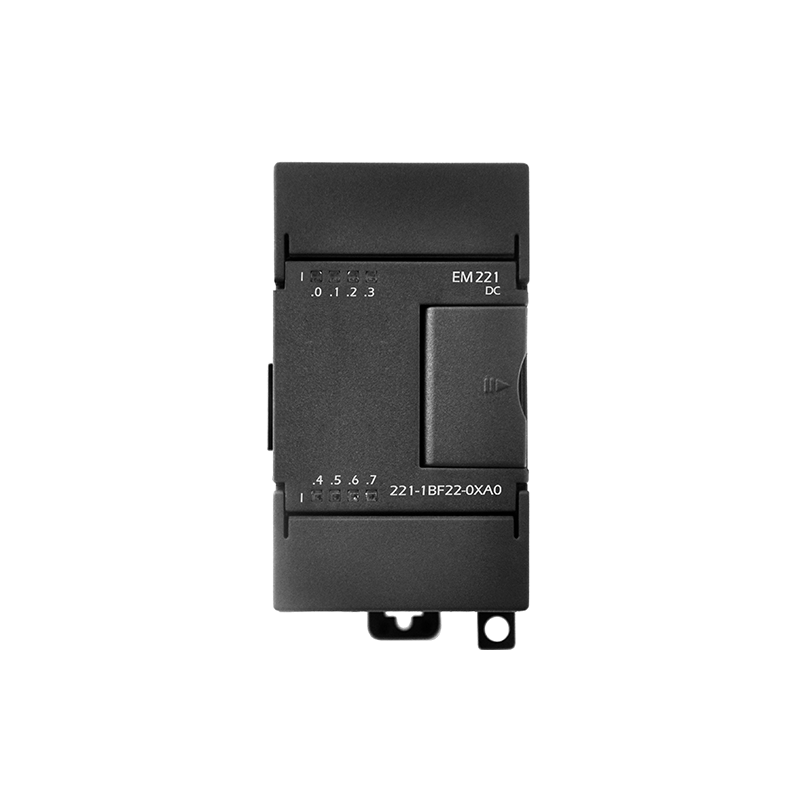

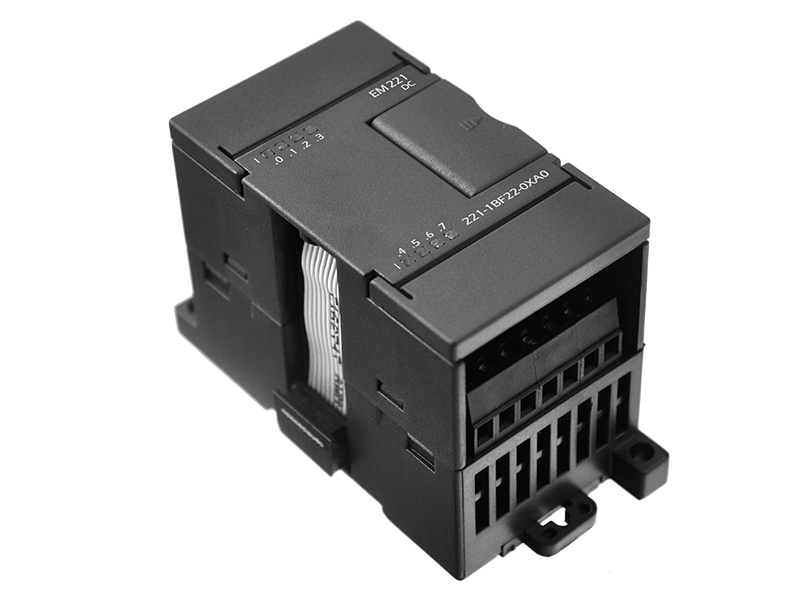

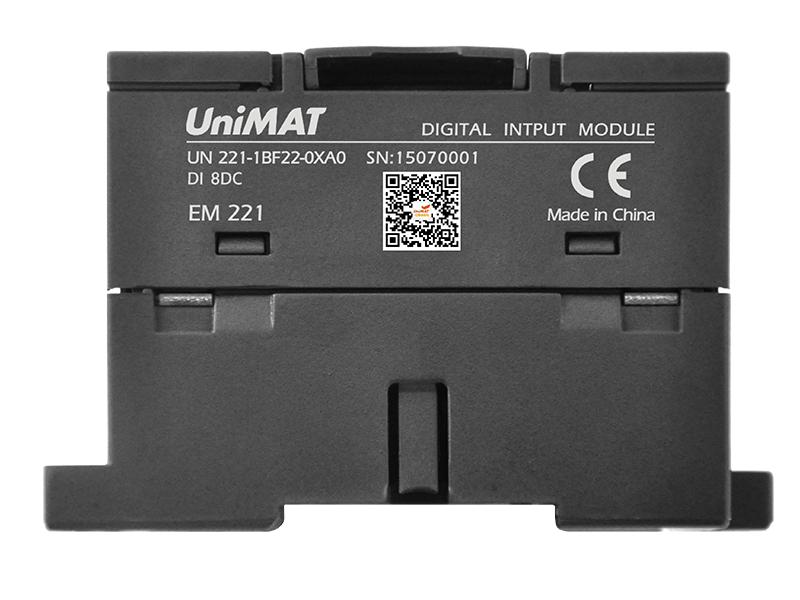

UniMAT EM221 8DI 24V DC Programmable Logic Controller UN221-1BF22-0XA0
1) EM221 8DI, 24V DC;
2) Compatible with Siemens 6ES7221-1BF22-0XA0;
3) Digital Input module;
4) Could connect with Siemens 200 CPU;
5) 3-year warranty;
6) Material: ABS, IC.
| Model | EM221 8 inputs |
| From bus current consumption | 40mA |
| Power loss | 2W |
| Number of digital inputs | 8 |
| Signal input type | PNP/NPN |
| Input voltage range | 24V DC, 4mA |
| Maximum input voltage | 30V DC |
| Surge voltage | 35V DC, 0.5s |
| Logic 0 signal | 0~5V DC |
| Logic 1 signal | 15~30V DC |
| Input delay(max) | 4.5ms |
| Optical isolation(Galvanic) (Field Side to Logic) | 500 V AC for 1 minute |
| Premissible leakage current(Bero) | 1mA |
| Cable Length | 500m(Shielded ) 300m(Unshielded) |
| Dimensions(W x H x D)(mm) | 46× 80× 62 |
| Order Number | UN 221-1BF22-0XA0 |
