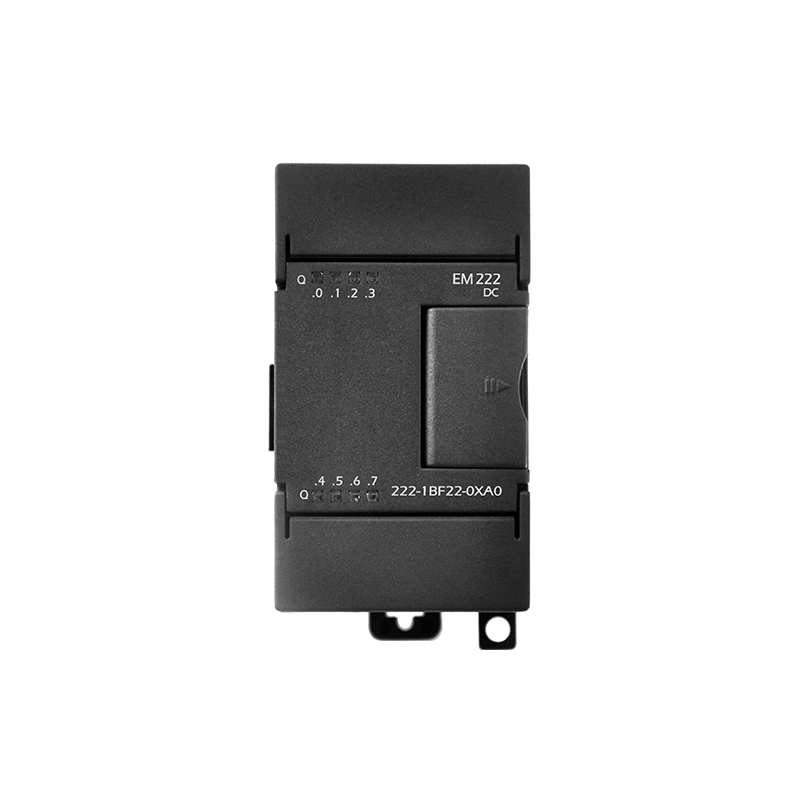

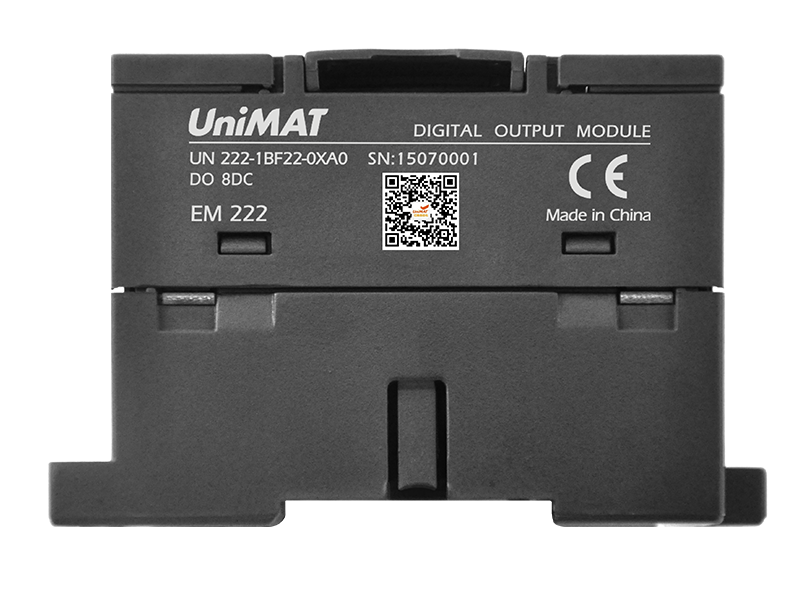

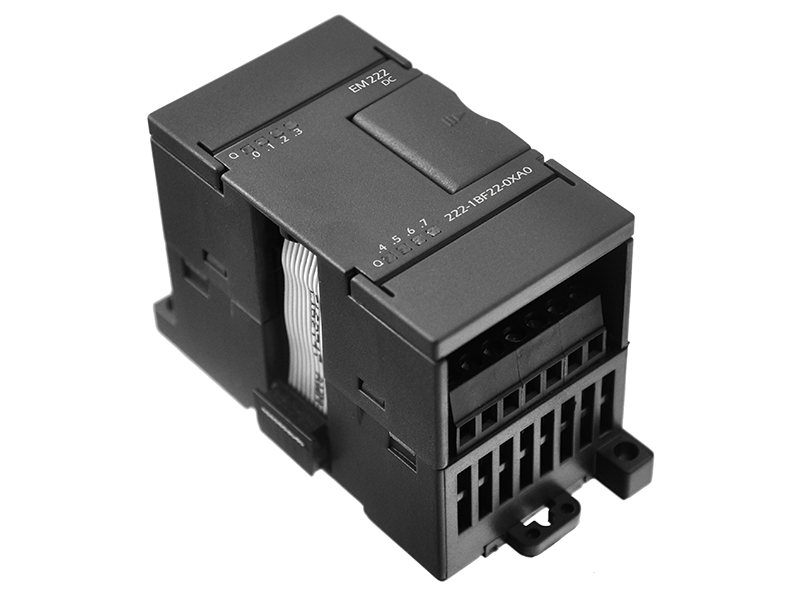

UN 222-1BF22-0XA0


The expasion modules have the same design features as the basic units,

the modules are connected to each other and to the cpu by means of bus connectors......

Power consumption



·From +5V DC backplane bus

65mA

·Power loss

2W

Number ofdigital contact

8

Output type

Transistor

Isolation tested for contact

Optocoupler

Rated voltage

24 V DC

Voltage range

20.4~28.8VDC

Rated voltage

0.75A

Lamp loadswitching frequency

5W

Cable length(shielded)

500m

Cable length(unshielded)

150m

Dimensions(W x H x D)(mm)

46×80×62

weight

150g

unimat
