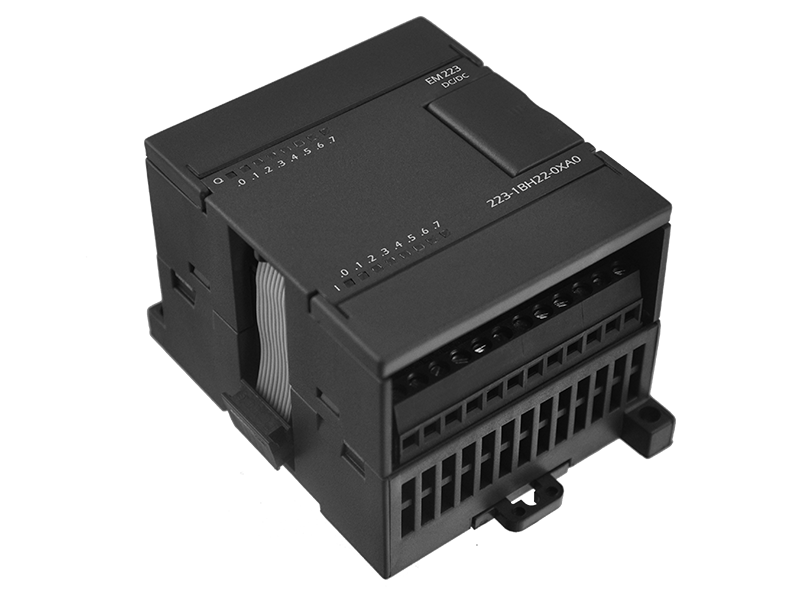

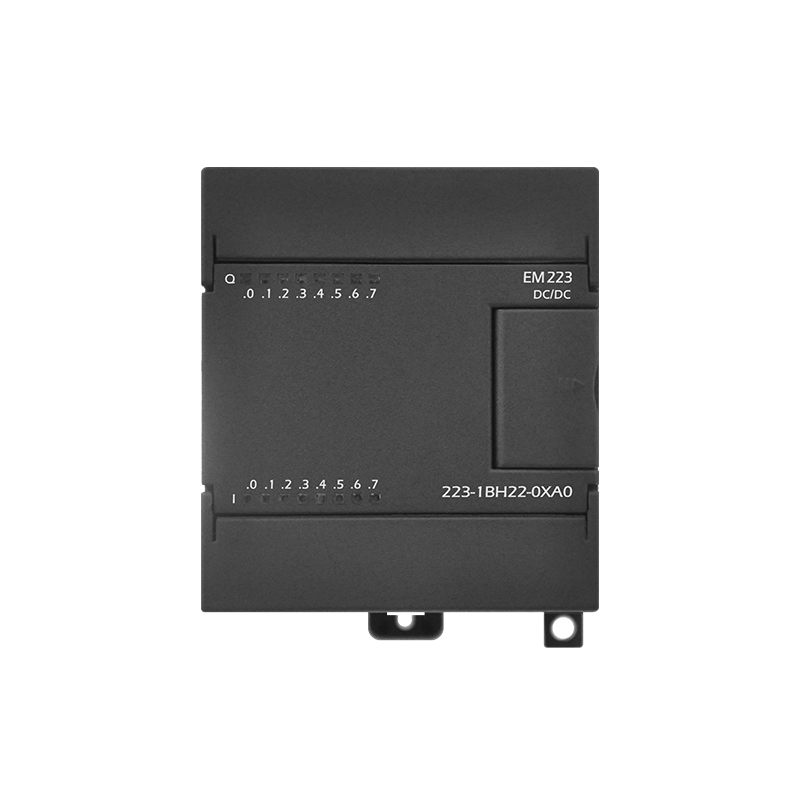

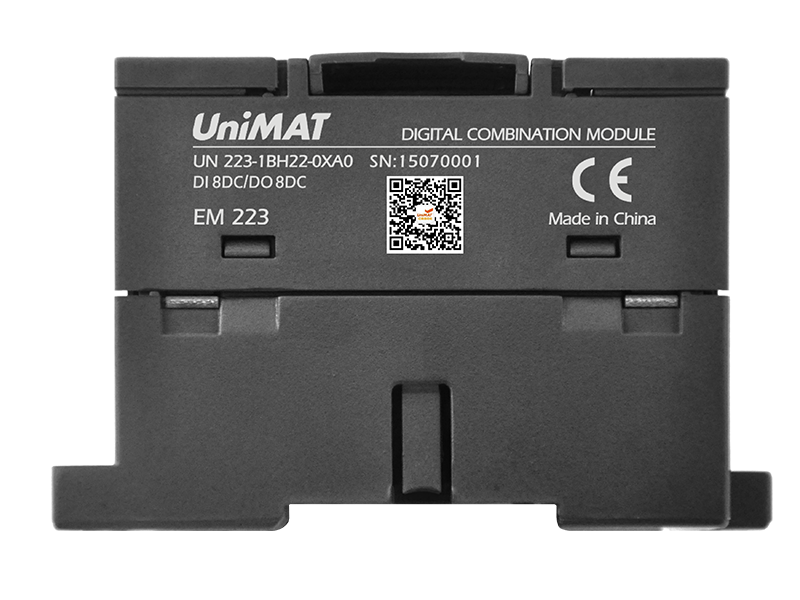

UN 223-1BH22-0XA0
EM 223 8DI / 8DO Chinese Micro PLC Controller which is similar as Siemens PLC
1). EM223 8DI / 8 DO , 24V DC with transistor ;
2). Compatible with Siemens 6ES7 223-1BH22-0XA0 ;
3). Digital Input and Output module ;
4). Could connect with Siemens 200 CPU ;
5). 3 year warranty ;
|
Power consumption |
|
|
·From +5V DC backplane bus |
80mA |
|
·Power loss |
3W |
|
Number of digital contact |
8 |
|
Rated voltage |
24V 4mA |
|
·for “0”signal |
0~5V DC |
|
·for “1”signal |
15~30V DC |
|
Input delay(Max) |
4.5ms |
|
Signal input type |
PNP/NPN |
|
Isolation tested for contact |
500VAC,1Min |
|
Cable length(shielded) |
500m |
|
Cable length(unshielded) |
300m |
|
Number of digital contact |
8 |
|
Output type |
Transistor |
|
Isolation tested for contact |
Optocoupler |
|
Rated voltage |
24 VDC |
|
Voltage range |
20.4~28.8VDC |
|
Rated voltage |
0.75A |
|
Lamp load |
5W |
|
Cable length(shielded) |
500m |
|
Cable length(unshielded) |
150m |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
|
weight |
145g |
