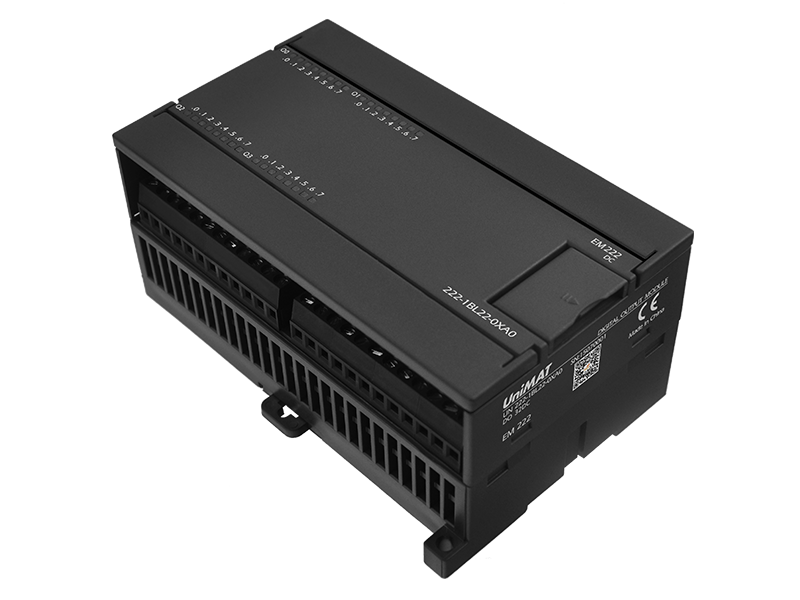

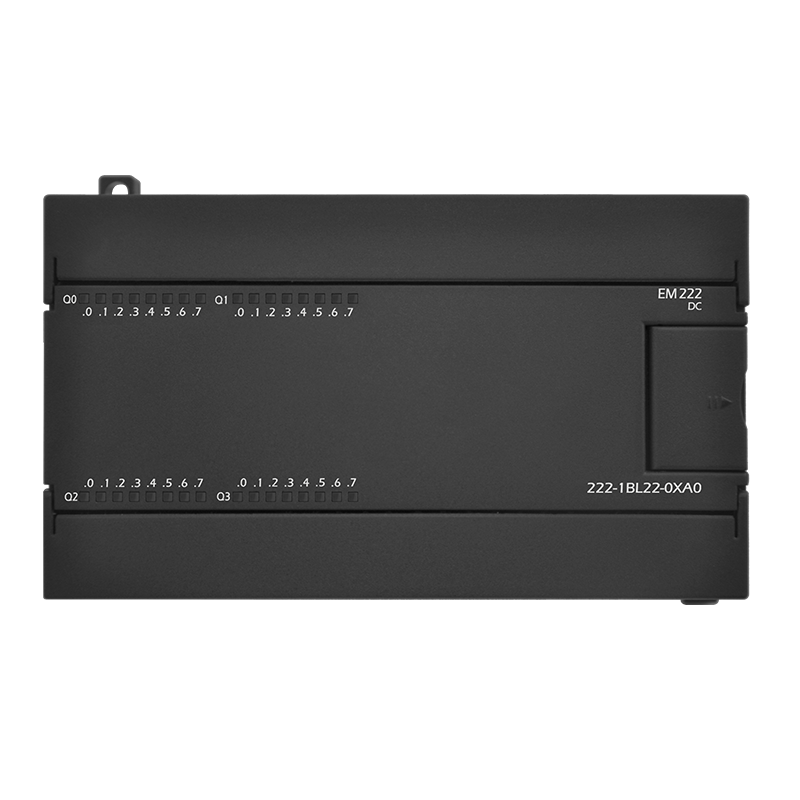

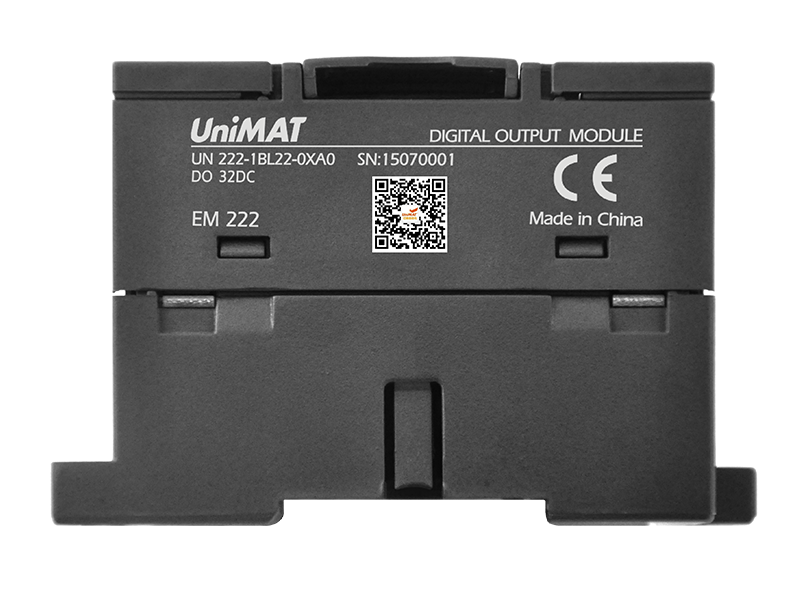

UN 222-1BL22-0XA0
EM 222 32 outputs digital Modular PLC , the replacement of Siemens PLC
1). EM222 32 DO , 24V DC with transistor ;
2). Compatible with Siemens 6ES7222-1BL22-0XA0 ;
3). Digital output module ;
4). Could connect with Siemens 200 CPU ;
5). 3- year warranty ;
|
Product Description |
32DO,24V DC;Transistor; Optical isolation with high immunity |
|
The bus current consumption |
140mA |
|
Power loss |
5.2W |
|
Number of digital outputs |
32 |
|
Signal output type· |
Transistor |
|
Isolation |
Optical coupler |
|
Rated voltage |
24V DC |
|
Permissible voltage range |
20.4~28.8V DC |
|
Rated current |
0.75A |
|
Lamp load |
5W |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
150m |
|
Switching frequency |
/ |
|
Lifetime contact mechanical |
/ |
|
Lifetime contact mechanical(rated load voltage) |
/ |
|
Dimensions(W x H x D)(mm) |
137.5×80×62 |
