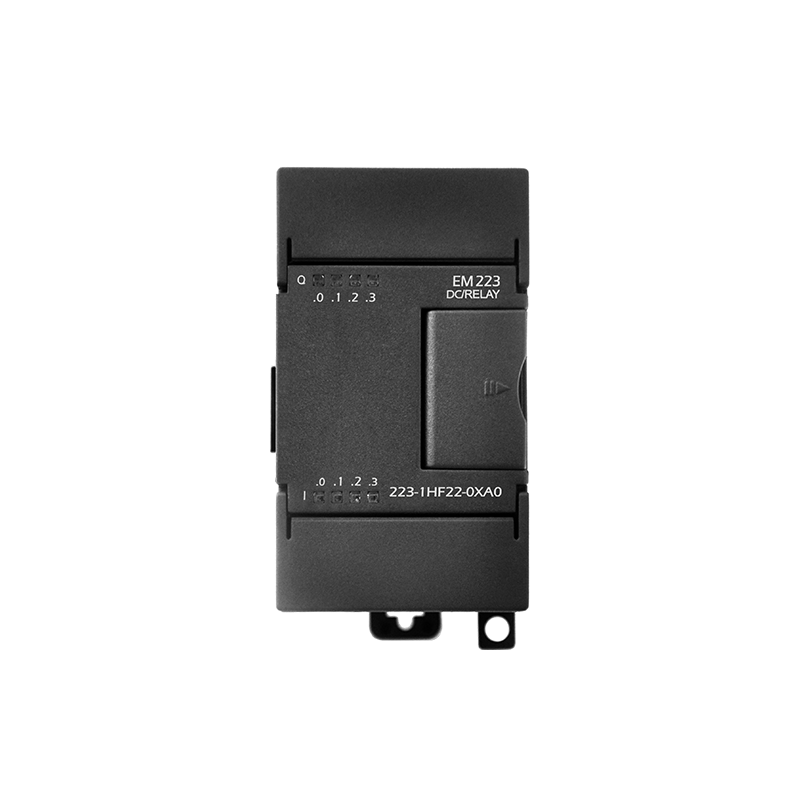

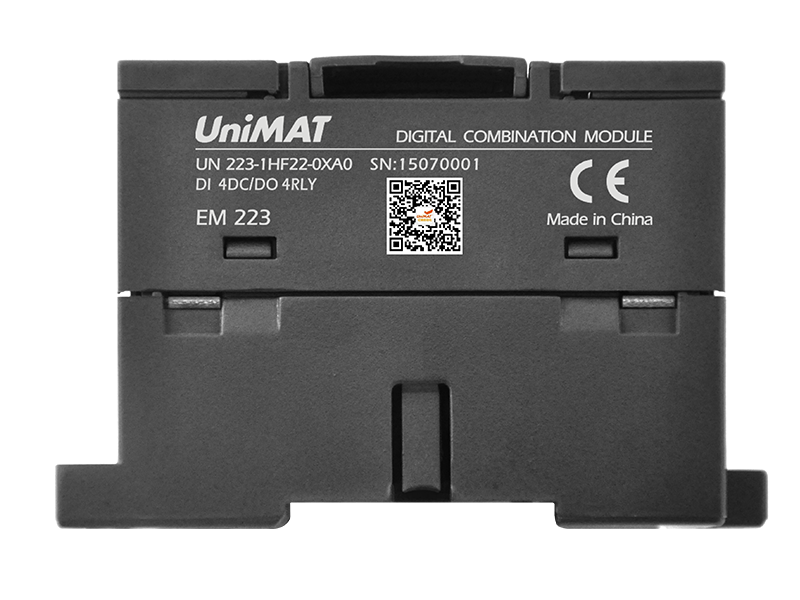

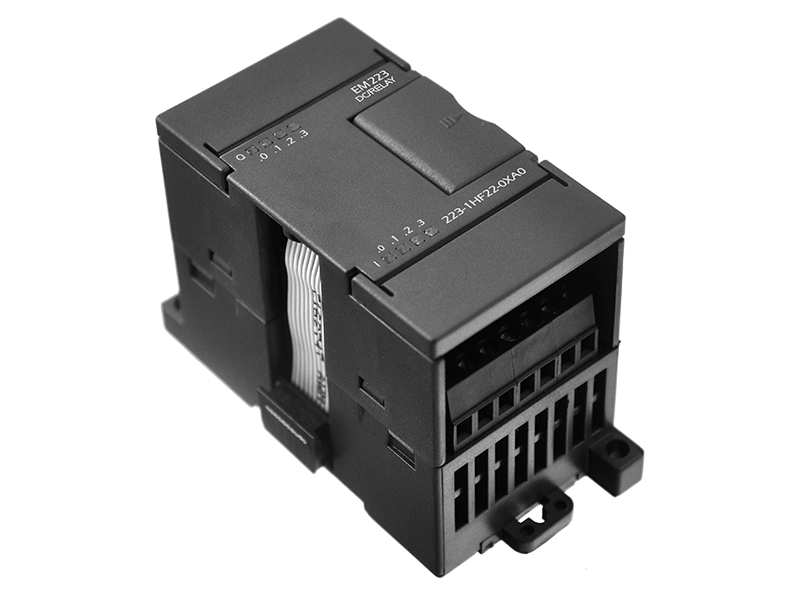

UN 223-1HF22-0XA0
EM 223 4DI / 4DO Digital Micro PLC Controller with relay
1). EM223 4DI / 4 DO , 24V DC with relay ;
2). Compatible with Siemens 6ES7223-1HF22-0XA0 ;
3). Digital Input and Output module ;
4). Could connect with Siemens 200 CPU ;
5). 3-year warranty ;
|
Product Description |
4DI,24VDC,/4DO, 24 VDC/250VAC, Relay isolation with high immunity. |
|
From bus current consumption |
40mA |
|
Power loss |
2W |
|
Input Features |
|
|
Number of digital inputs |
4 |
|
Input voltage |
24V DC,4mA |
|
Logic 0 signal |
0~5V DC |
|
Logic 1 signal |
15~30V DC |
|
Maximum Input Delay Time |
4.5ms |
|
Signal input type· |
PNP/NPN |
|
Optical isolation(Galvanic) (field to logic) |
500 VAC for 1 minute |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
300m |
|
output Features |
|
|
Number of digital outputs |
4 |
|
Output type |
Relay |
|
Isolation |
Relay |
|
Output voltage |
24V DC or 250V AC |
|
Output voltage range |
5~30V DC/20~250V AC |
|
Output Current |
2.0A |
|
Lamp load |
30W DC/200W AC |
|
Lifetime mechanical |
10,000,000 |
|
Lifetime contacts(Rated load voltage |
100,000 |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
150m |
|
Dimensions(W x H x D)(mm) |
46×80×62 |
