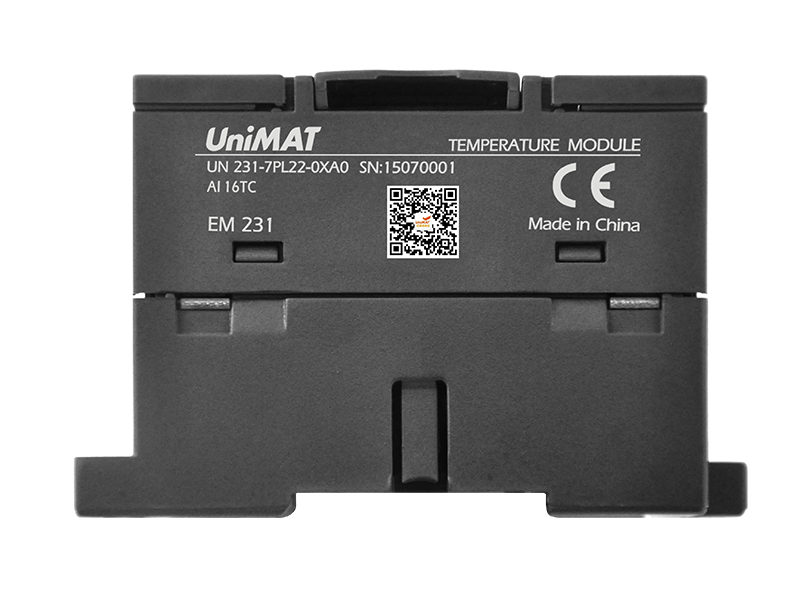

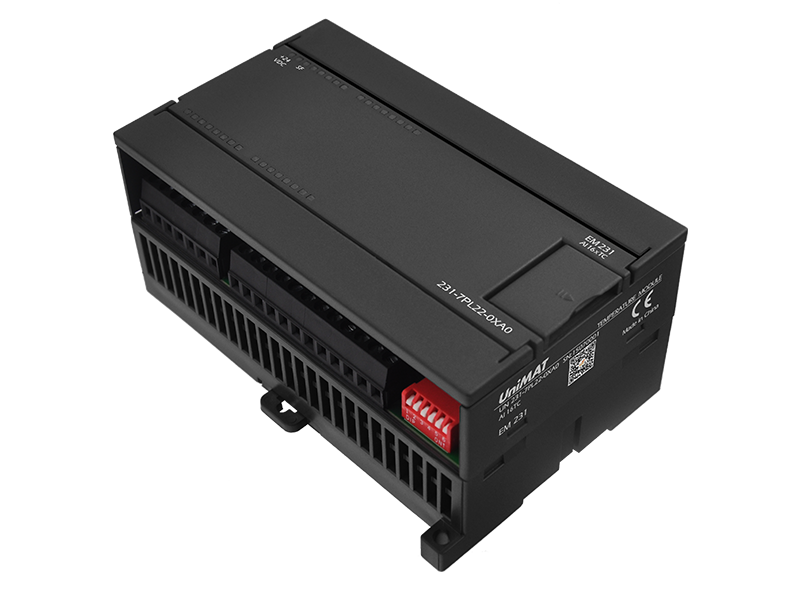

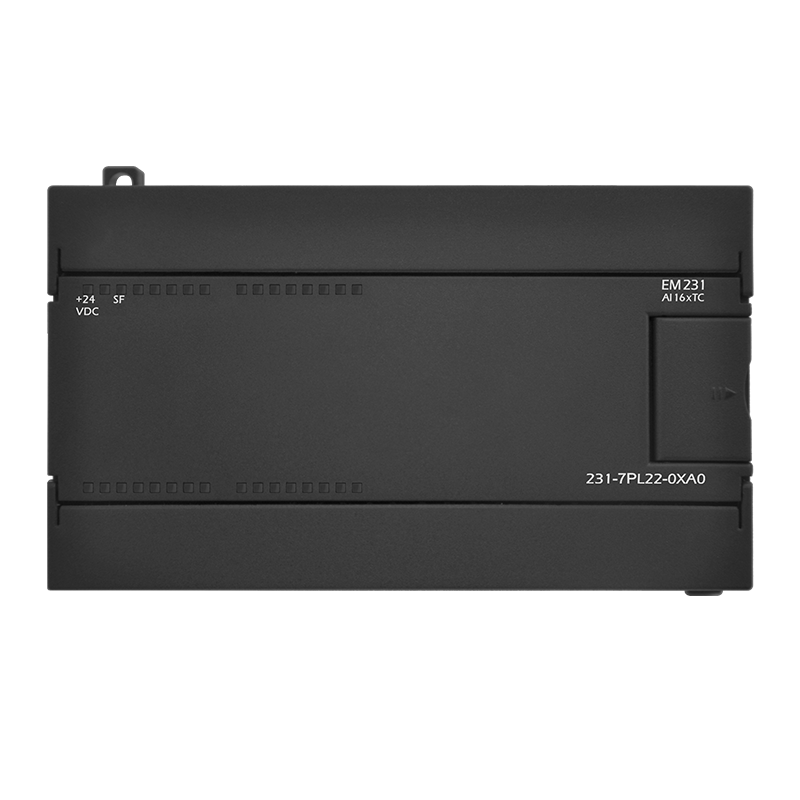

EM231 16 inputs Thermocouple


16AI;

Thermocouple temperature measurement modules; Resolution:16bits

Optical isolation; high immunity;stable.

Product Description

16AI;

Thermocouple temperature measurement modules; Resolution:16bits

Optical isolation; high immunity;stable

Technical Specification

From bus current consumption

110mA

From L+ current consumption

40mA

Power loss

2.1W

Number of analog inputs

16

Signal input type·

loating Thermocouple

Common-mode rejection

>120dB@120V AC

Wire loop resistance(Max)

100 Ω

Module update time

1030ms

Data word format

Voltage:+27648~+27648

Input range

TC Type(choice one)·

J,K

Voltage range:±80mV

Measuring principle

Sigma→delta

Resolution

15+1 Sign bit

Address interval

VW

Basic error

0.1%FS

Isolation (field to logic)

>3000V

24VDC supply voltage range

20.4~28.8V DC

Dimensions(W x H x D)(mm)

137.5×80×62
