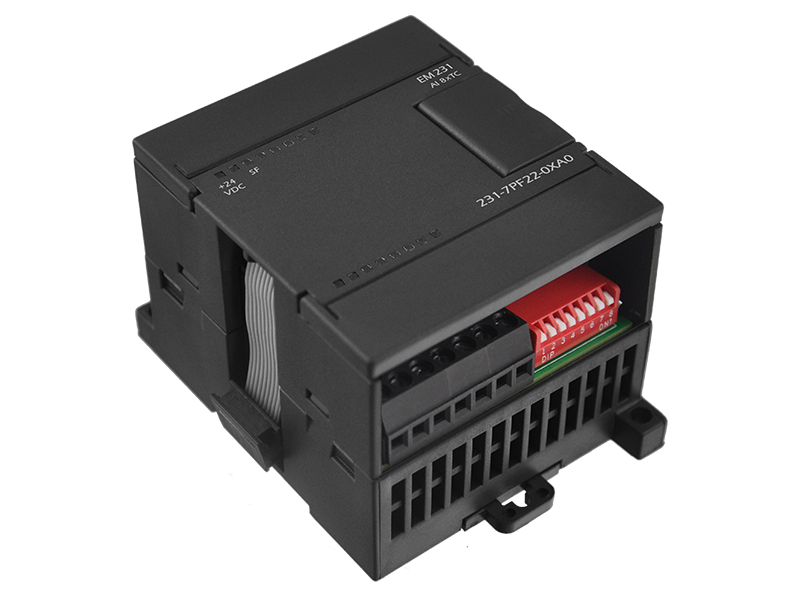

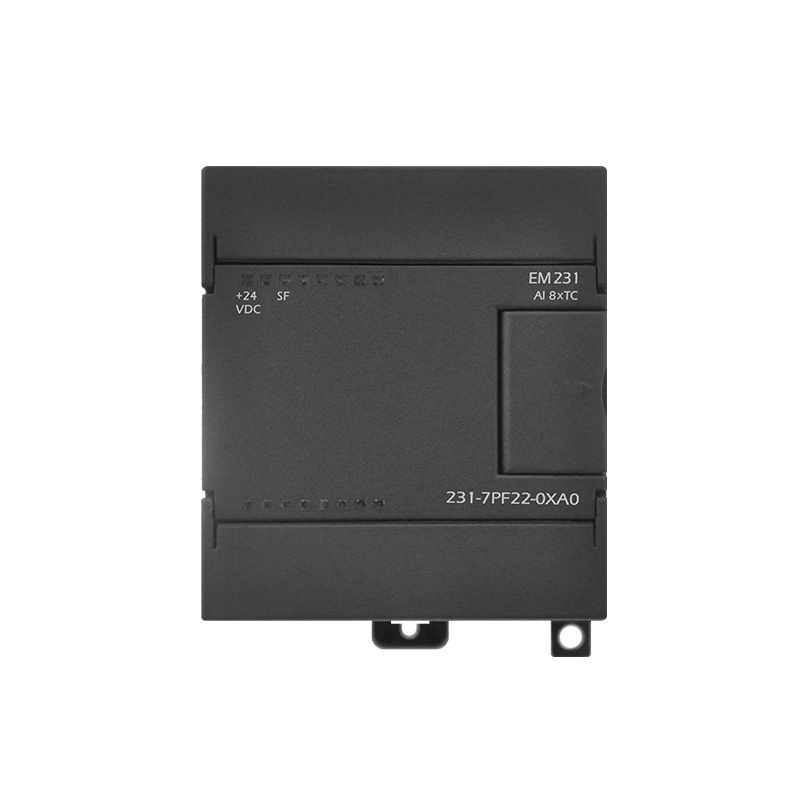

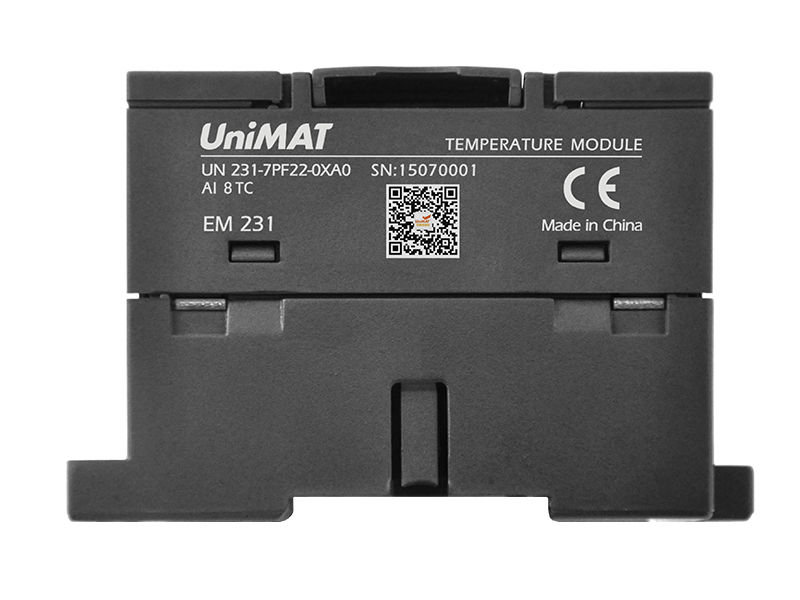

EM231 8inputs，TC
Analog TC temperature measurement module, resolution 16 bits,
Optocoupler isolation, stable
|
Product Description |
4AI; Thermocouple temperature measurement modules; Resolution:16bits Optical isolation; high immunity;stable |
|
Technical Specification |
|
|
From bus current consumption |
107mA |
|
From L+ current consumption |
60mA |
|
Power loss |
2.1W |
|
Number of analog inputs |
8 |
|
Signal input type· |
Floating Thermocouple |
|
Common-mode rejection |
>120dB@120V AC |
|
Wire loop resistance(Max) |
100 Ω |
|
Module update time |
580ms |
|
Data word format |
Voltage:+27648~+27648 |
|
Input range |
Type：E,J,K,N,R,S,T Voltage range:±80mV |
|
Measuring principle |
Sigma→delta |
|
Resolution |
15+1 Sign bit |
|
Address interval |
AIW |
|
Basic error |
0.1%FS |
|
Isolation (field to logic) |
>3000V |
|
24VDC supply voltage range |
20.4~28.8V DC |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
