UN 222-1HH22-0XA0

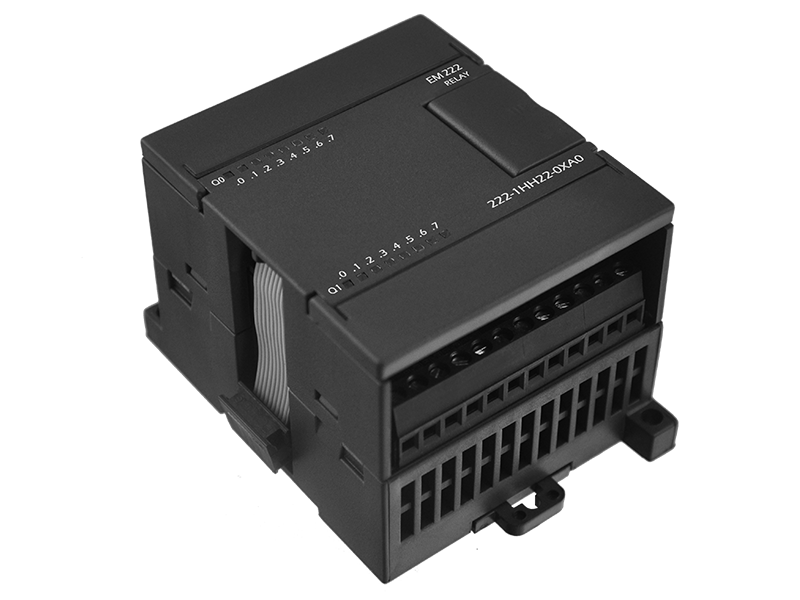

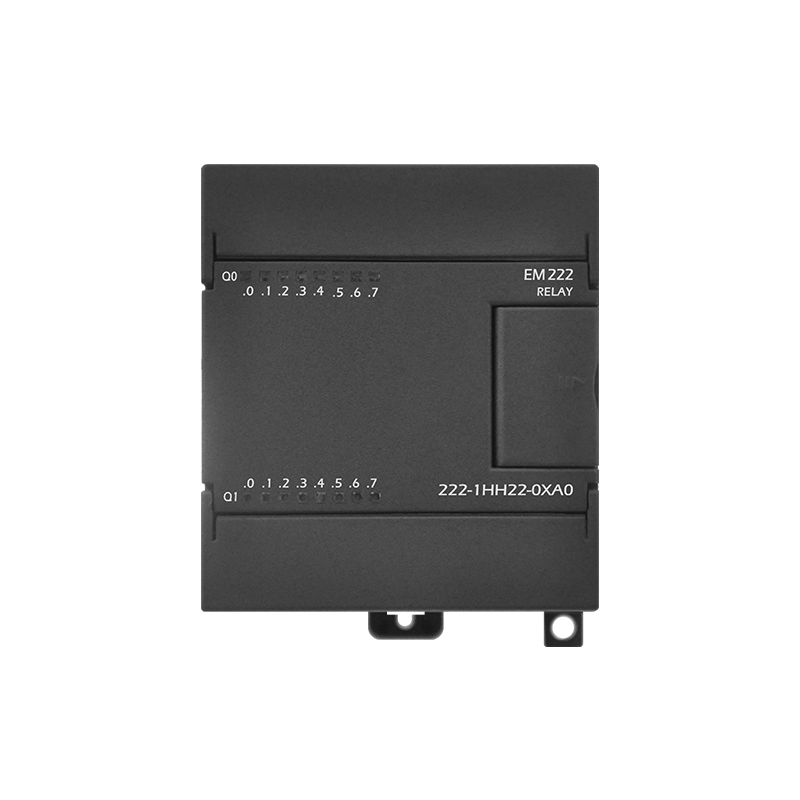

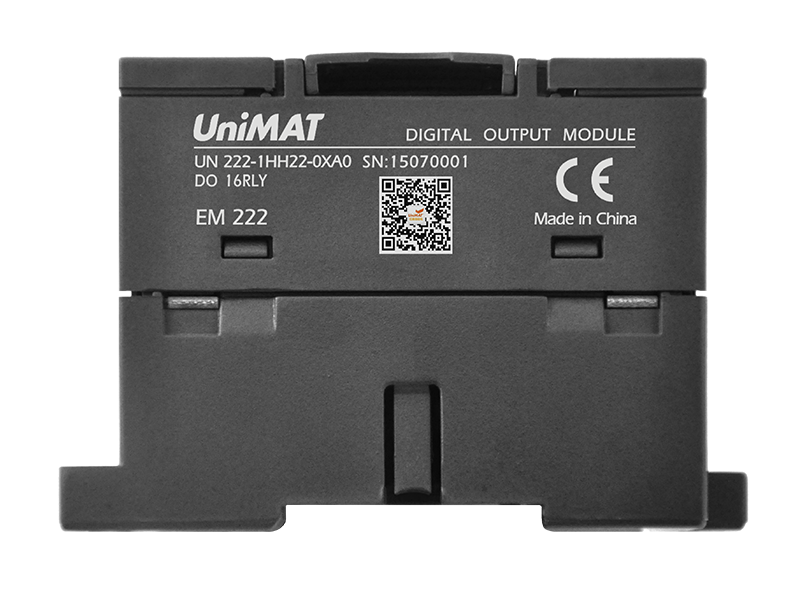

Chinese PLC 200 PLC Digital 16 Outputs Modular PLC 222-1HH22-0XA0
1). EM222 16 DO , 24V DC / 250V AC , relay
2). Compatible with Siemens 6ES7222-1HH22-0XA0 ;
3). Digital Output module ;
4). Could connect with Siemens 200 CPU ;
5). 3-year warranty ;
|
Product Description |
16DO,24V DC/250V AC Relay; high immunity |
|
The bus current consumption |
98mA |
|
Power loss |
3W |
|
Number of digital outputs |
16 |
|
Signal output type· |
Relay |
|
Isolation |
Relay |
|
Rated voltage |
24V DC or 250V AC |
|
Permissible voltagerange |
5~30V DC,20~250V AC |
|
Rated current |
2A |
|
Lamp load |
30W DC/200W AC |
|
Cable Length(Shielded) |
500m |
|
Cable Length(unshielded) |
150m |
|
Switching frequency |
1Hz |
|
Lifetime contact mechanical |
10,000,000 |
|
Lifetime contactmechanical( rated load voltage) |
100,000 |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
