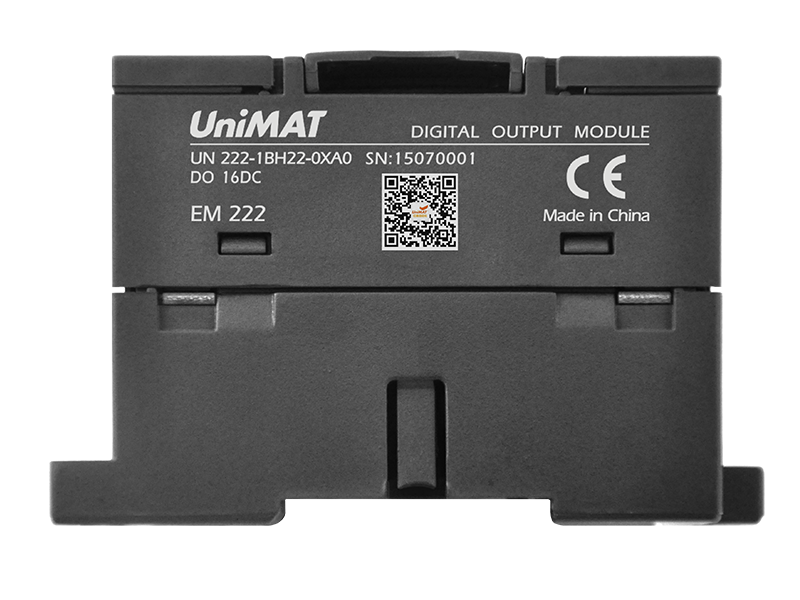

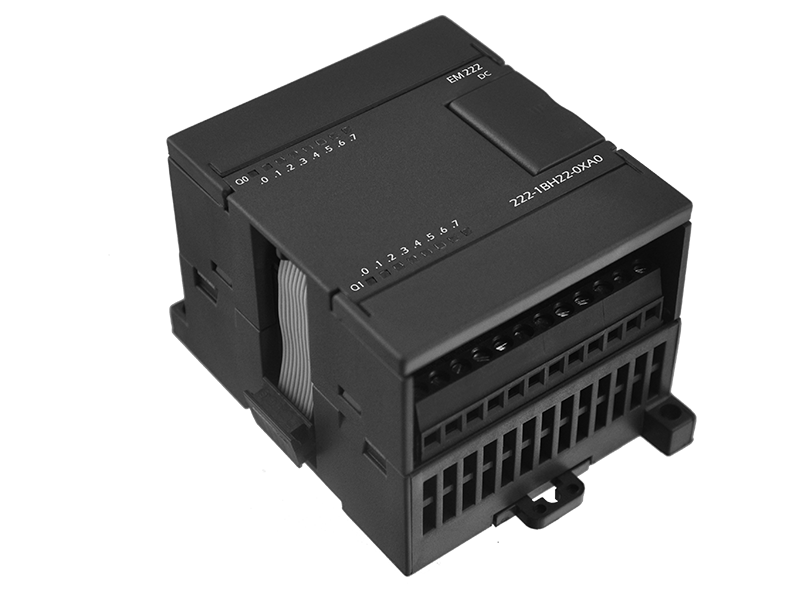

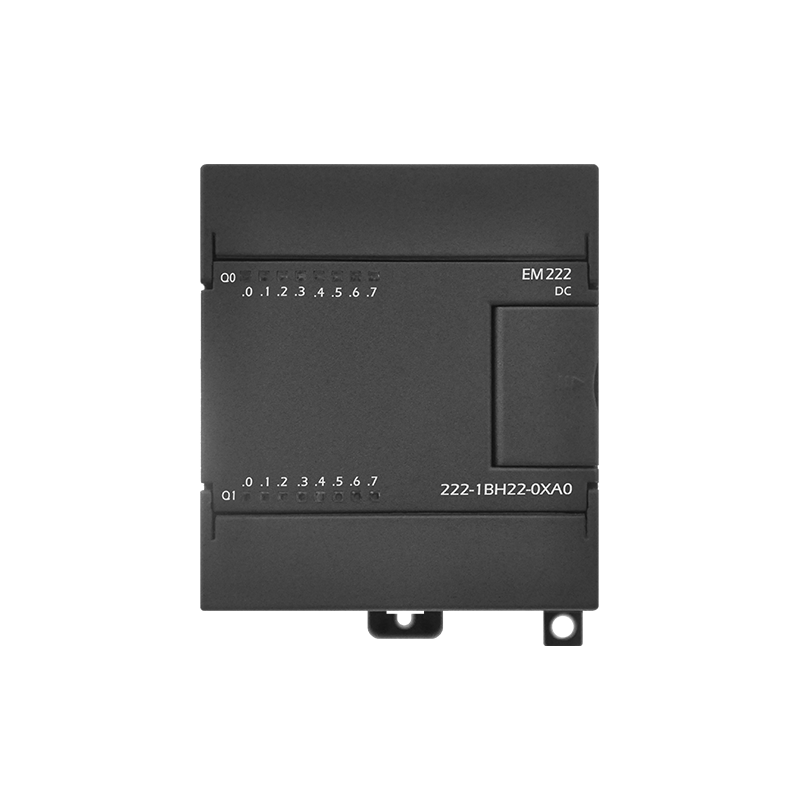

UN 222-1BH22-0XA0


EM222 Digital 16 Outputs 200 PLC equivalent of Siemens PLC

1). EM222 16 DO ,  24V DC transistor ;
2). Compatible with Siemens 6ES7222-1BH22-0XA0 ;
3). Digital output module ;
4). Could connect with Siemens 200 CPU ;
5). 3-year warranty ;

Technical specifications
Power consumption
@ The bus current consumption 110mA
@ Power loss 3W
Number of digital outputs 16
Signal Output type Transistor
Isolation Optical coupler
Rated voltage 24  V  DC
Permissible Voltage range 20.4~28.8VDC
Rated current 0.75A
Lamp load switching frequency 5W
Cable length(shielded) 500m
Cable length(unshielded) 150m
Dimension(wxhxd)mm 71.2x80x62
Weight 150g
Oder No. UN222-1BH22-0XA0
