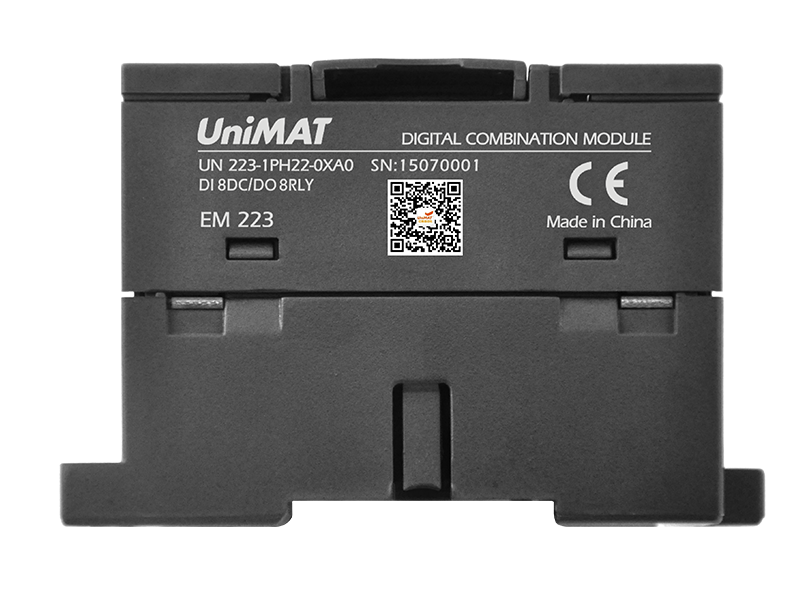

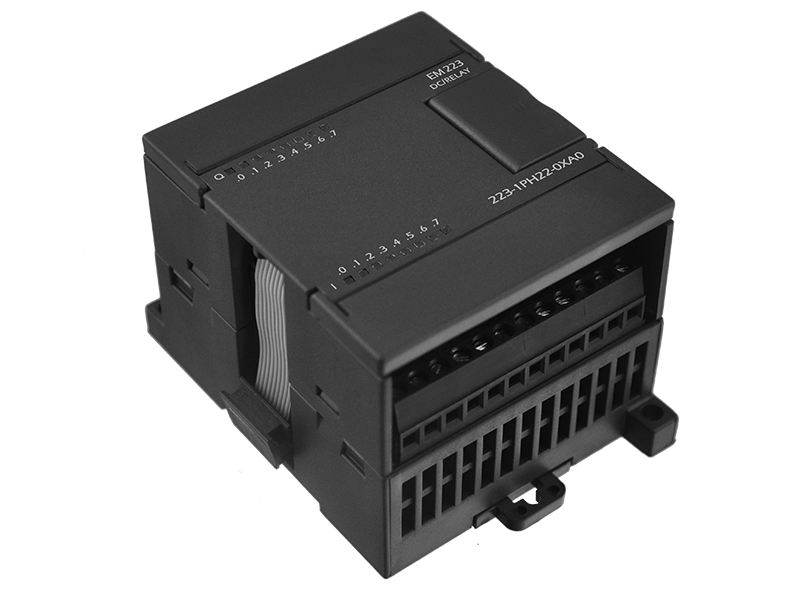

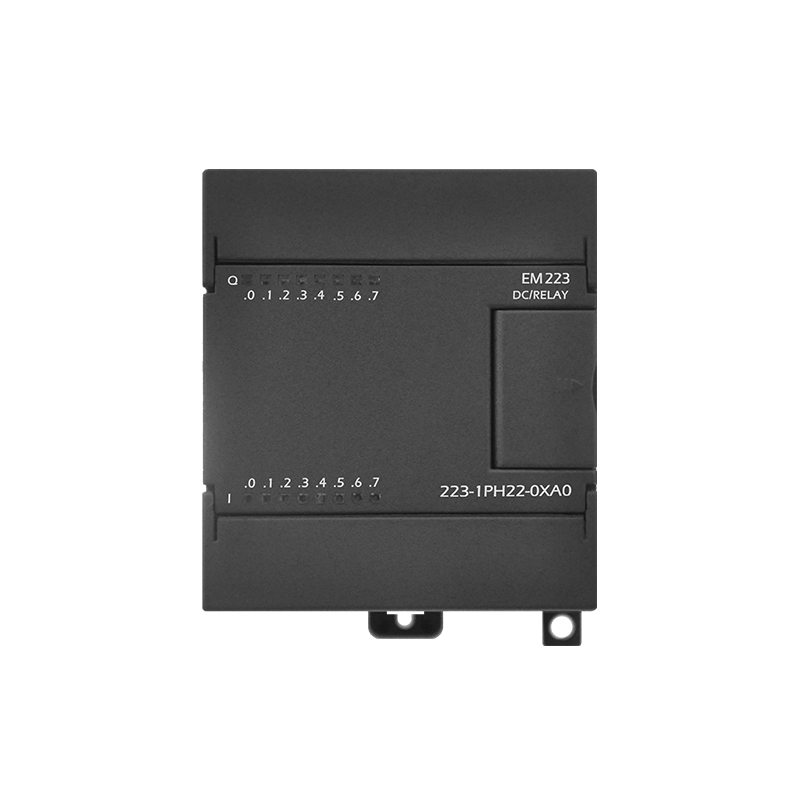

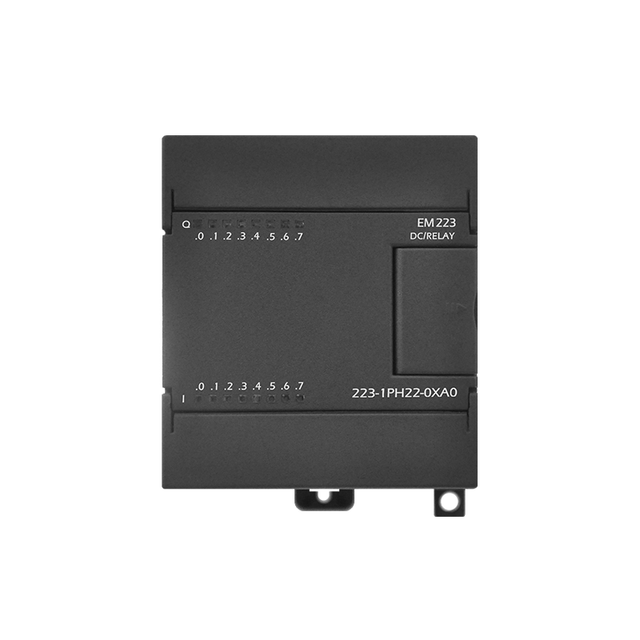

UN 223-1PH22-0XA0
EM 223 8 Digital Input / 8 digital outputs 200 PLC Digital module with Relay
1). EM223 8DI / 8 DO , 24V DC with relay ;
2). Compatible with Siemens 6ES7223-1PH22-0XA0 ;
3). Digital Input and Output module ;
4). Could connect with Siemens 200 CPU ;
5). 3- year warranty ;
| Model | EM223 16 inputs/outputs Relay |
| Product Description | 8DI, 24VDC/8DO, 24 VDC/250VAC, Relay isolation with high immunity. |
| From bus current consumption | 80mA |
| Power loss | 3W |
| Digital Input Specification | |
| Number of digital inputs | 8 |
| Input voltage | 24 VDC, 4mA |
| Logic 0 signal | 0~5 VDC |
| Logic 1 signal | 15~30 VDC |
| Maximum Input Delay Time | 4.5ms |
| Signal input type@ | PNP/NPN |
| Optical isolation(Galvanic) | 500 V AC for 1 minute |
| Cable Length(Shielded) | 500m |
| Cable Length(unshielded) | 300m |
| Digital Output Specification | |
| Number of digital outputs | 8 |
| Output type | Relay |
| Isolation | Relay |
| Output voltage | 24 VDC |
| Output voltage range | 5~30 VDC/20~250V AC |
| Output Current | 2.0A |
| Lamp load | 30W DC/20~250W AC |
| Lifetime contact mechanical | 10, 000, 000 |
| Lifetime contact mechanical (rated load voltage) |
100, 000 |
| Cable Length(Shielded) | 500m |
| Cable Length(unshielded) | 150m |
| Dimensions(W x H x D)(mm) | 71.2× 80× 62 |
| Order Number | UN 223-1PH22-0XA0 |
