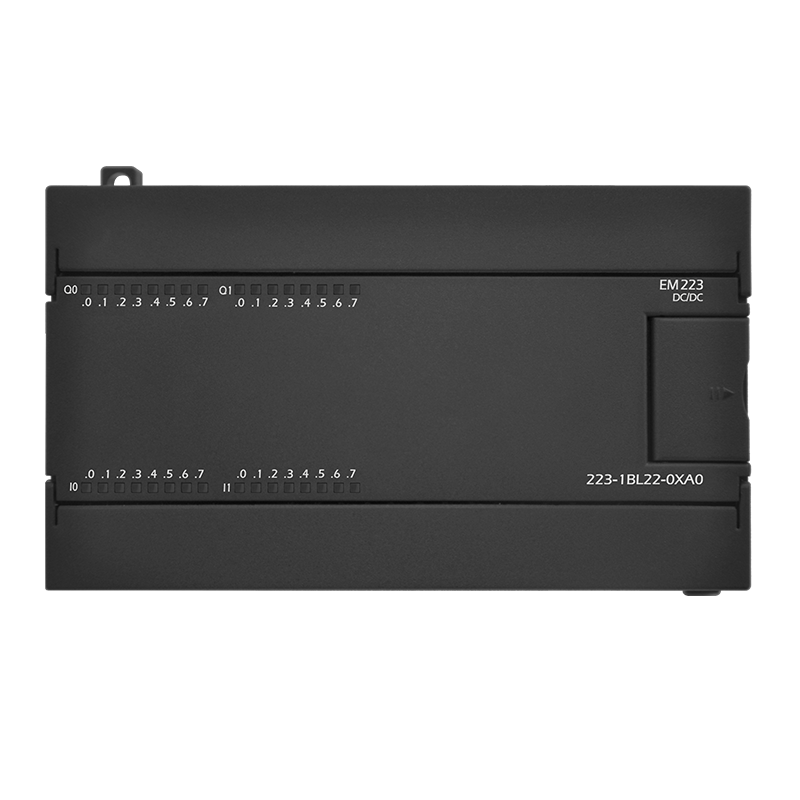

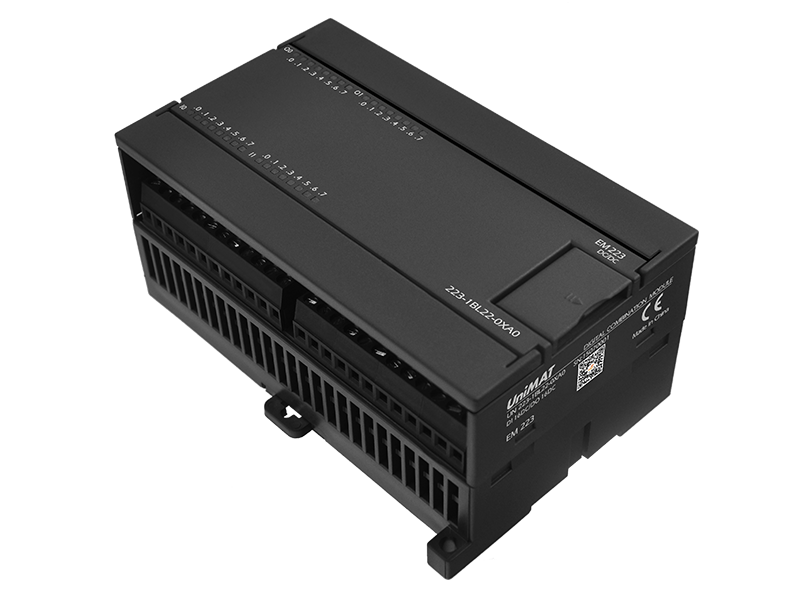

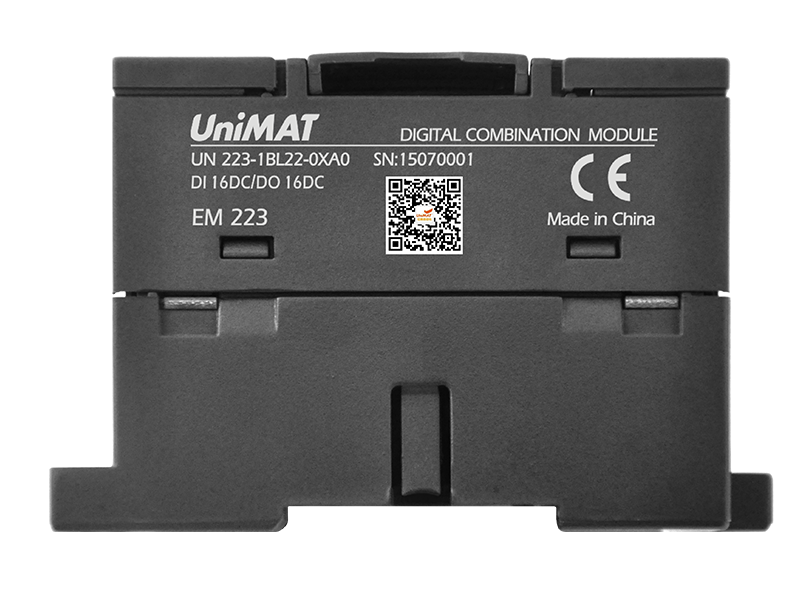

UN 223-1BL22-0XA0
EM 223 16DI / 16DO 200 series Programming Logic Controller with transistor
1). EM223 16DI / 16 DO , 24V DC with transistor ;
2). Compatible with Siemens 6ES7223-1BL22-0XA0 ;
3). Digital Input and Output module ;
4). Could connect with Siemens 200 CPU ;
5). 3-year warranty ;
|
Product Description |
16DI,24VDC/16DO, 24 VDC Optical isolation with high immunity. |
|
From bus current consumption |
140mA |
|
Power loss |
5.2W |
|
Digital Input Specification |
|
|
Number of digital inputs |
16 |
|
Input voltage |
24 VDC |
|
Logic 0 signal |
0~5 VDC |
|
Logic 1 signal |
15~30 VDC |
|
Maximum Input Delay Time |
4.5ms |
|
Signal input type· |
PNP/NPN |
|
Optical isolation(Galvanic) |
500 V AC for 1 minute |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
300m |
|
Digital Output Specification |
|
|
Number of digital outputs |
16 |
|
Output type |
Transistor |
|
Isolation |
Optical coupler |
|
Output voltage |
24 VDC or 250V AC |
|
Output voltage range |
20.4~28.8V AC |
|
Output Current |
0.75A |
|
Lamp load |
5W |
|
Lifetime contact mechanical |
/ |
|
Lifetime contact mechanical (rated load voltage) |
/ |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
150m |
|
Dimensions(W x H x D)(mm) |
137.5×80×62 |
