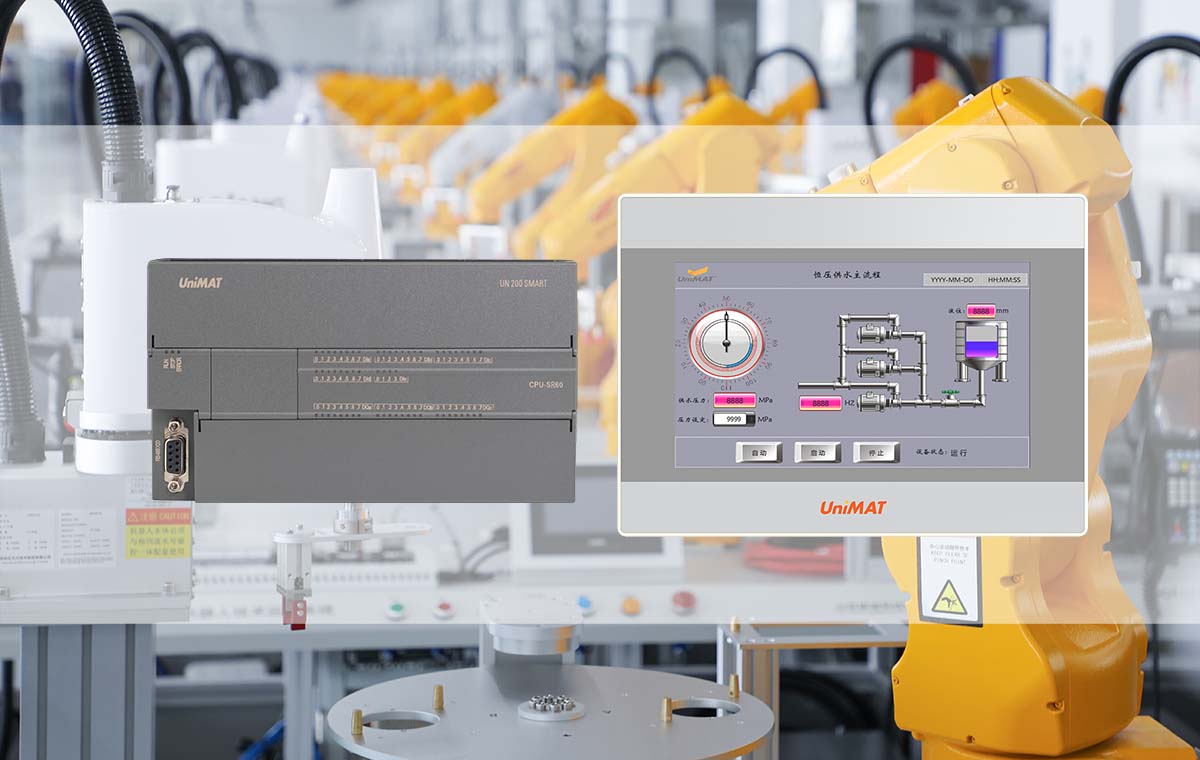

In today’s factories and production facilities,Human-Machine Interfaces(HMIs)and Programmable Logic Controllers(PLCs)work together like a well-oiled machine.But how exactly do these devices"talk"to each other?This guide breaks down the communication process in plain language,explores why it matters,and highlights affordable solutions like Unimat HMI—available in 4.3”,7”,and 10.1”sizes with free sample testing.
HMI and PLC Basics:The Brain and the Control Panel
PLC:Acts as the"brain"of machinery,processing inputs(sensors,switches)and controlling outputs(motors,valves).
HMI:Serves as the"control panel,"letting operators monitor data and send commands.
Think of it like a car:the PLC is the engine managing performance,while the HMI is the dashboard showing speed and fuel levels.
How HMI-PLC Communication Works(Step-by-Step)
Physical Connection:
HMIs and PLCs connect via cables(Ethernet,RS-485)or wireless networks.
Example:Unimat’s 7”HMI uses dual Ethernet ports for stable,high-speed links.
Protocol Handshake:
Both devices agree on a"language"(communication protocol).Common options:
Modbus:Simple and widely used(e.g.,HVAC systems).
EtherNet/IP:Faster,ideal for robotics(e.g.,automotive assembly lines).
PROFINET:Precision-focused for pharmaceutical manufacturing.
Data Exchange:
The HMI reads real-time data(e.g.,temperature,pressure)from the PLC.
Operators write commands(e.g.,start/stop machines)via the HMI to the PLC.
Why Communication Speed Matters
A 2024 study by Automation World found that 63%of production delays stem from slow HMI-PLC links.Here’s how to avoid bottlenecks:
Choose HMIs with<10ms response times(Unimat’s 10.1”model achieves 5ms).
Use protocols matching your needs:
Modbus RTU:Budget-friendly for small systems.
EtherNet/IP:Best for large-scale,data-heavy setups.
Unimat HMI:Affordable,Reliable,and Easy to Integrate
Designed for seamless PLC communication,Unimat HMIs stand out with:
| Screen Size | Best For | Price |
|---|---|---|
| 4.3” | Compact machines | good price |
| 7” | Mid-size production | good price |
| 10.1” | Complex control rooms | good price |
Key Features:
Supports 12+protocols(Modbus,EtherNet/IP,PROFINET).
Rated for harsh environments(-20°C to 60°C).
Free Sample Program:Test a unit risk-free for 30 days.
Real-World Example:Beverage Bottling Plant
A soda manufacturer upgraded from legacy HMIs to Unimat 10.1" HMI:
Problem:15-second lag in monitoring filling levels.
Solution:PROFINET protocol reduced latency to 0.2 seconds.
Result:18%fewer errors and 12%higher output.
Troubleshooting Common Issues
“No Connection”Errors:
Check cables(replace damaged ones).
Verify matching protocols on HMI and PLC.
Slow Data Updates:
Reduce polling frequency(e.g.,from 100ms to 500ms).
Use Unimat’s diagnostic toolkit to identify bottlenecks.
Screen Freezes:
Ensure firmware is updated(Unimat provides lifetime updates).
FAQs
Q:Can I use one HMI with multiple PLCs?
Yes!Unimat HMIs connect to up to 8 PLCs simultaneously(e.g.,managing conveyor belts,mixers,and packaging lines).
Q:How long do HMIs last?
Typical lifespan is 7–10 years.Unimat models include a 3-year warranty.
Q:Which protocol is easiest for beginners?
Start with Modbus TCP—Unimat’s preloaded templates simplify setup.
Why This Matters for Your Business
Optimizing HMI-PLC communication isn’t just technical jargon—it directly impacts:
Uptime:Faster error detection=fewer stoppages.
Safety:Instant alerts for overheating or pressure spikes.
Profitability:Unimat users report 6-month ROI through reduced downtime.
Ready to Upgrade?
Explore Unimat’s HMI lineup today.Claim your free sample unit and see why 4,500+factories trust their automation needs to Unimat.
