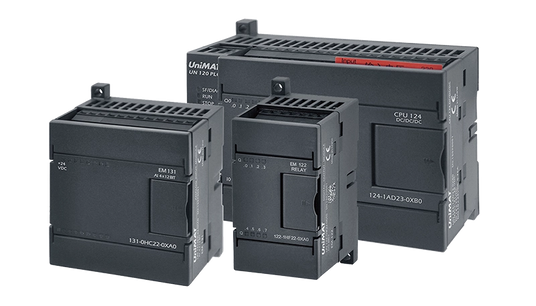

UN120L series basic PLC is a small and cost-effective programmable controller independently developed and produced by UniMAT Automation for the field of automated machinery and equipment. Relying on stable and reliable quality and meticulous cost control, it is the best choice for solving the automation of machinery and equipment .
UN120L series CPU adopts a compact structure, has a powerful instruction set, rich bus and excellent performance, and can control various industrial equipment. This product is mainly oriented to small automatic control systems and meets the requirements of various complex control functions.

UN 120 SERIES

High Cost Performance

8-14 digital inputs, 6-10 digital outputs
Program space 6-16K, data space 2-10K
14-24 digital inputs, 10-16 digital outputs.
2-way single-phase 20KHz counting
2-way 20KHz high-speed pulse output
1-2 RS485 interfaces
Integrated Ethernet interface CPU
Power-off data retention
AES iterative encryption technology

Product Features

  • The main body integrates 8~14 digital inputs and 6~10 digital outputs. Some products integrate 4AI/2AO analog functions.

  • The program space covers 6~16K, and the data space covers 2~10K. Supports battery card memory card function, and can be expanded to a maximum of 4~7 I/O modules (CPU122 does not support expansion).

  • The main body supports 2 channels of single-phase 20KHz counting, and CPU124E and CPU124XPE support 1 channel of AB phase 10KHz high-speed counting.

  • Supports 2 channels of 20KHz high-speed pulse output. All support UniMAT autonomous motion control library.

  • Supports commonly used functions such as pulse output, return to origin, point and speed movement (transistor output only, except CPU122).

  • This machine comes with 1~2 RS485 communication interfaces, all of which support free port, PPI, and MODBUSPTU communication. Supports UniMAT's independent MODBUS-RTU communication library function. Effectively improve communication efficiency and reduce program space occupation.

  • Supports the industry's leading permanent data retention function without additional battery support, and data can be saved for up to 10 years.

  • Supports AES iterative encryption technology to protect user programs and intellectual property rights.
