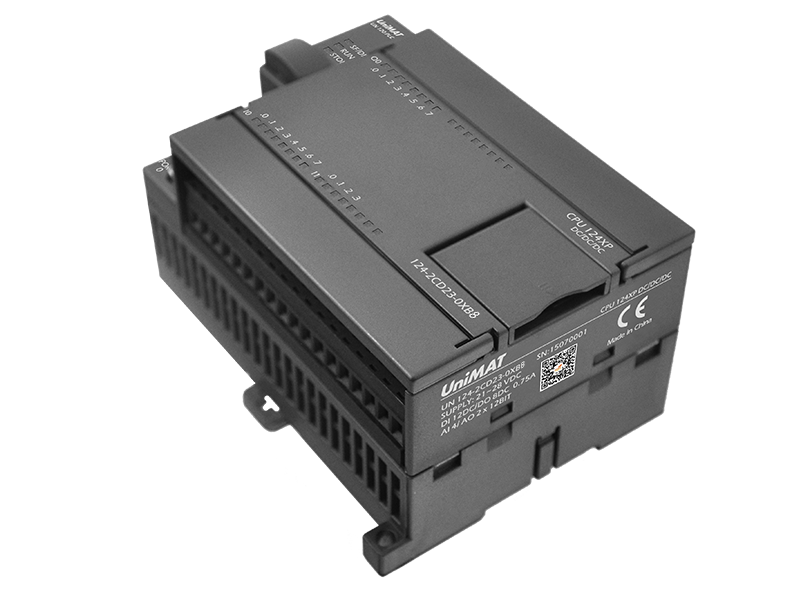

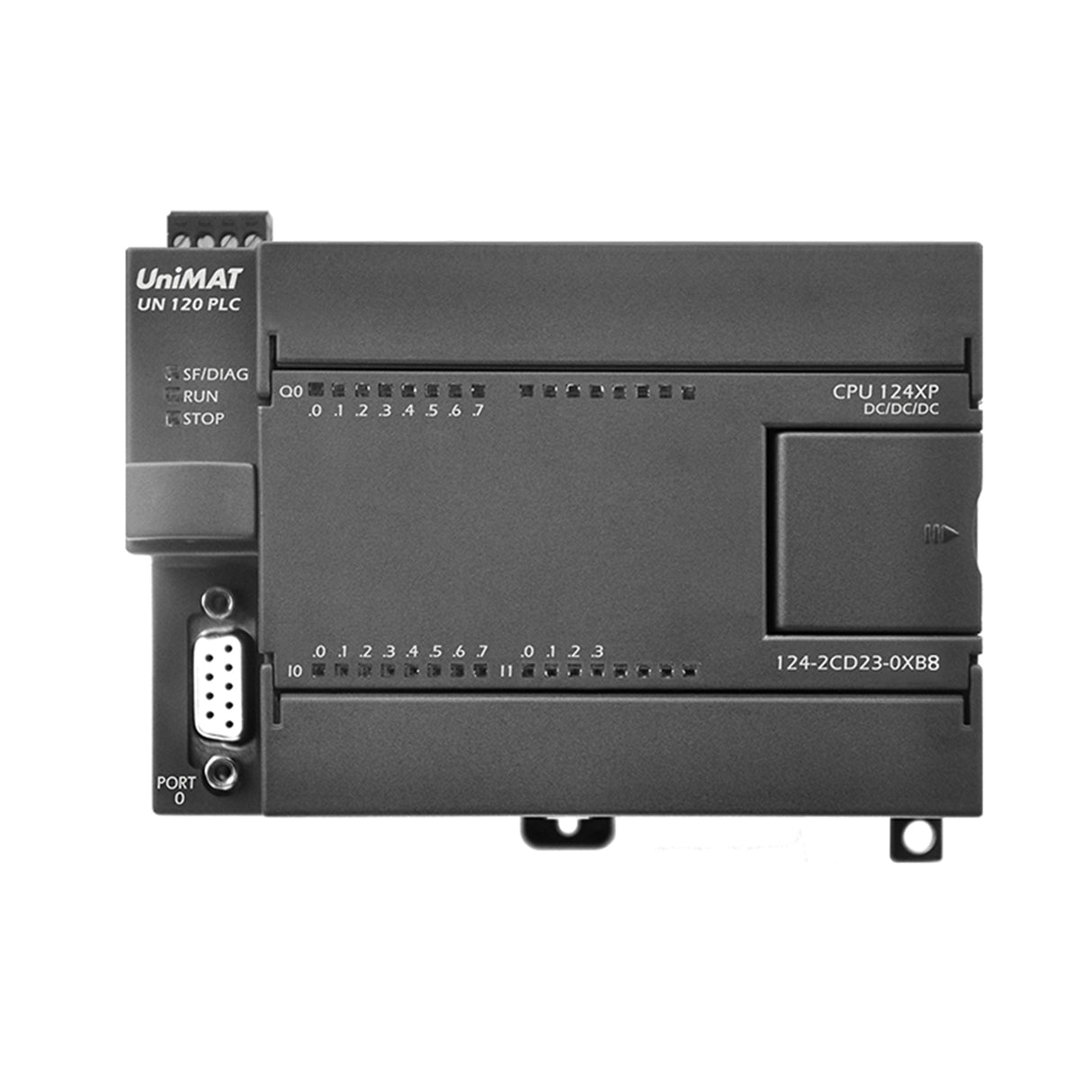

CPU124XP-2Q DC/DC/DC
• Excellent value for money;
• Comes with 12DI/8DO, 4AI/2AO , 4 modules can be expanded;
• 24V power supply, transistor output;
• Using FLASH technology to keep power off for a long time, without battery support, data can be stored for up to 10 years;
• Unique AES iterative encryption algorithm to protect users' intellectual property rights;
• With two communication interfaces, both support PPI communication protocol.
|
model |
CPU 124XP DC/DC/DC |
|
physical properties |
|
|
Dimensions (W*H*D) |
120.5*80*62mm |
|
Power consumption |
7W |
|
Memory characteristics |
|
|
program memory |
14K |
|
data storage |
10K |
|
I/O Characteristics |
|
|
Local digital input |
12 inputs |
|
Local digital output |
8 outputs |
|
Local analog input |
4 inputs |
|
Local analog output |
2 outputs |
|
Digital I/O Image Area |
128 (64 in/64 out) |
|
Analog I/O image area |
32 (16 in/16 out) |
|
Maximum allowable expansion I/O modules |
4 modules |
|
Pulse catch input |
12 |
|
General Features |
|
|
Total number of timers |
256 total, 4 1ms, 16 10ms, 236 100ms |
|
Total number of counters |
256 |
|
Power-down memory retention |
256 |
|
time interruption |
2 1ms resolution |
|
edge interrupt |
4 rising edges and/or 4 falling edges |
|
Analog potentiometer |
2 x 8-bit resolution |
|
clock |
built-in |
|
Integrated communication functions |
|
|
interface |
2 RS-485 ports (one of which is a standard PPI communication port) |
|
PPI bit rate |
9.6, 19.2 and 187.5kbps |
|
Maximum length of each cable |
With isolated interruption relays: 187.5kbps up to 1000 meters, 38.4kbps up to 1200 meters without isolated repeaters |
|
Maximum number of sites |
32 stations per segment, 126 stations per network |
|
Maximum number of master stations |
32 |
|
PPI master mode |
not support |
|
Power characteristics |
|
|
Input voltage |
20.4 to 28.8VDC |
|
electric shock |
12A at 28.8V DC |
|
Insurance |
3A 250V slow melting |
|
sensor current |
none |
|
bus current |
340mA |
|
Digital Input Characteristics |
|
|
Local integration of digital input points |
12 inputs |
|
input type |
PNP/NPN |
|
Rated voltage |
24VDC, 4mA |
|
Maximum continuous allowable voltage |
30V DC |
|
surge voltage |
35VDC, 0.5 seconds |
|
logic 1 [minimum] |
15VDC 2.5mA |
|
logic 0[max] |
5VDC 1mA |
|
input filter |
1-13ms |
|
Allowable leakage current [max] |
1mA |
|
isolation |
Yes |
|
Optical isolation |
500VAC for 1 minute |
|
high-speed counter |
20K single phase |
|
Digital output characteristics |
|
|
Local integrated digital output points |
8 outputs |
|
output type |
24V output |
|
Rated voltage |
24VDC |
|
voltage range |
20.4-28.8VDC |
|
Inrush current (max) |
8A 100ms |
|
logic 1 (minimum) |
20VDC (at maximum current) |
|
logic 0 (max) |
0.1VDC 10kΩ load |
|
Rated current per point (max) |
0.5A |
|
Current rating per common (max) |
4A |
|
Leakage current [max] |
10uA |
|
Lamp load [max] |
5W |
|
Inductive clamping voltage |
L+ minus 48VDC 1W power consumption |
|
On-resistance [contact] |
0.3Ω typical (0.6Ω max) |
|
Pulse frequency [max] |
20KHz 2 (Q0.0 Q0.1) |
|
mechanical life cycle |
- |
|
Contact life |
- |
|
Two outputs in parallel |
Yes, only when outputting the same group |
|
Analog Input Characteristics |
|
|
Local integrated digital output points |
4 inputs |
|
Analog input bytes |
single ended |
|
voltage range |
±10V |
|
Data word format, full scale range |
-32000 to +32000 |
|
DC input impedance |
>100KΩ |
|
Maximum input voltage |
30VDC |
|
Resolution |
11 bits plus 1 sign bit |
|
LSB value |
4.88mV |
|
isolation |
none |
|
precision |
± 2.5% of full scale [worst case 0 to 55 degrees] ± 1.0% of full scale [typ. 25 degrees] |
|
Repeatability |
± 0.05% of full scale |
|
Analog to digital conversion time |
125ms |
|
Convert bytes |
SAR |
|
step response |
250ms max |
|
noise suppression |
Typical -40dB@50Hz |
|
Analog output characteristics |
|
|
Local integrated digital output points |
2 outputs |
|
Signal range |
Voltage 0-10V Current 0-20mA |
|
Data word format full-scale range |
0 to +32767 |
|
Data word format full-scale range |
0 to +32000 |
|
Resolution full scale |
12 bits |
|
LSB value |
Voltage 2.44mA Current 4.88uA |
|
isolation |
none |
|
precision |
worst case Voltage output ± 2% of full scale Current output ± 3% of full scale typical Voltage output ± 1% of full scale Current output ± 1% of full scale |
|
Build time |
Voltage output 50us Current output 100us |
|
Maximum output drive |
Voltage output >=5000Ω min Current output <=500Ω max |
|
Environmental parameters |
|
|
Working temperature |
0℃～＋60℃ |
|
Transport ambient temperature |
-20℃-80℃ |
|
Ambient relative humidity |
5~90% |
|
Protection class |
IP20 |
