X-E16X
Order number: X-E16X-00

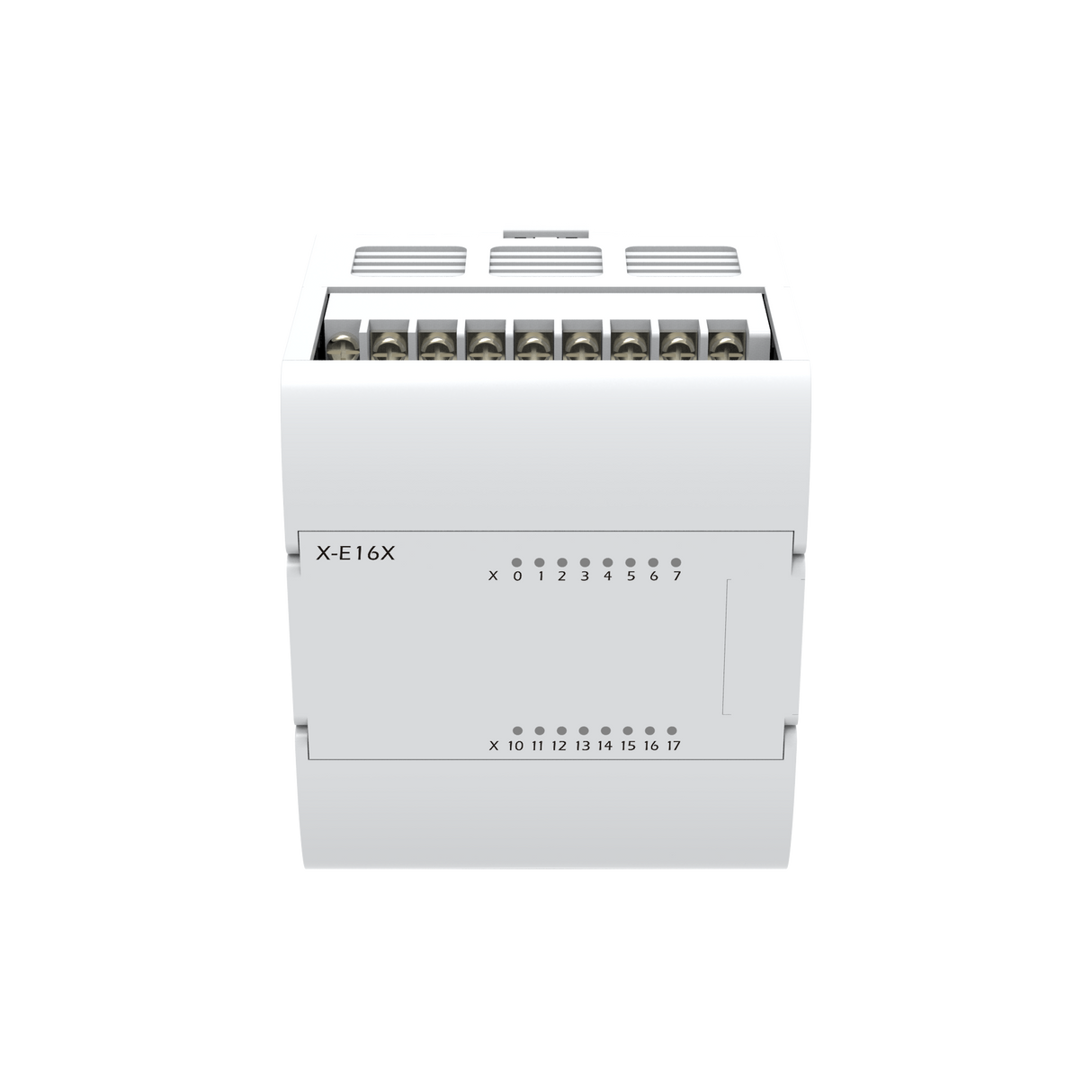

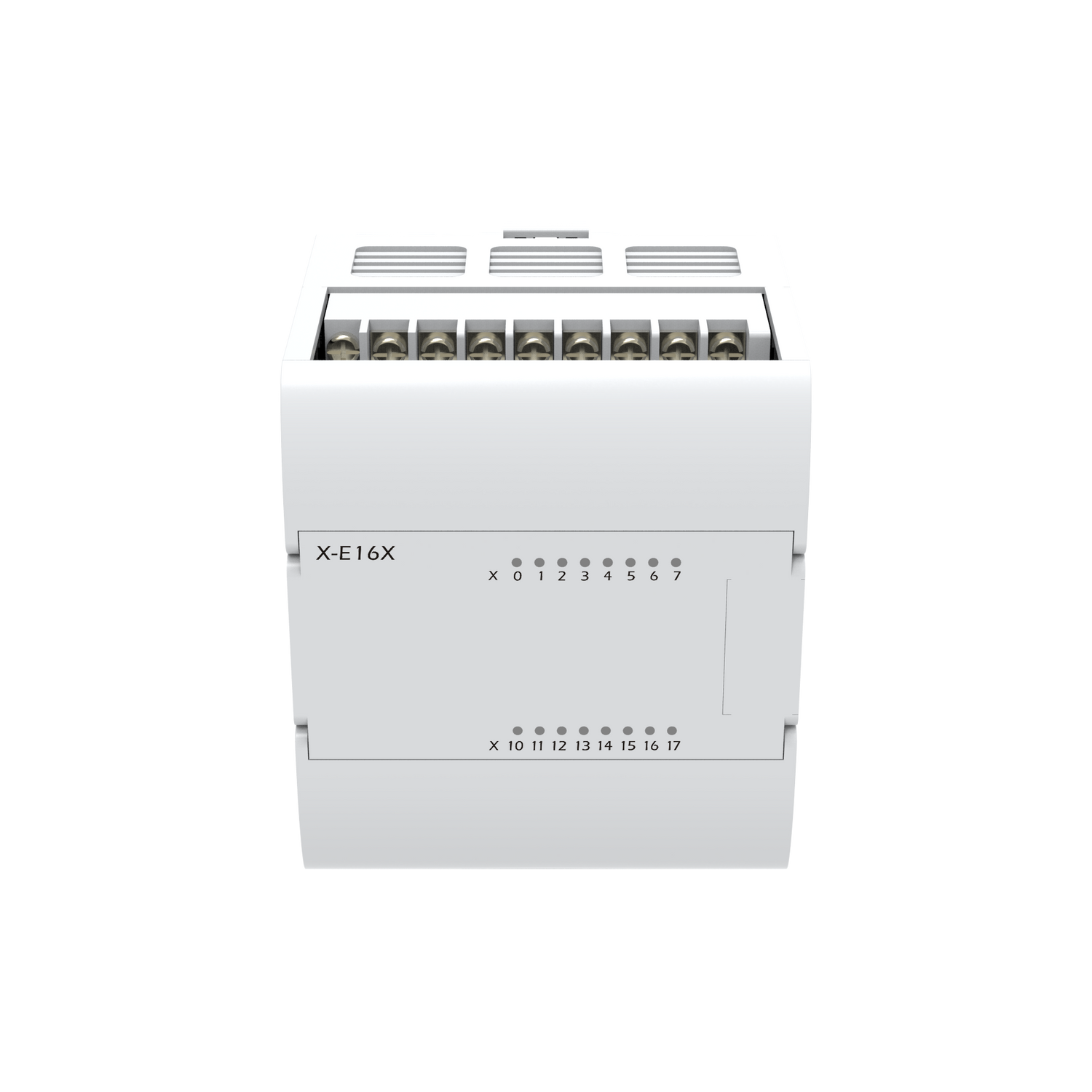

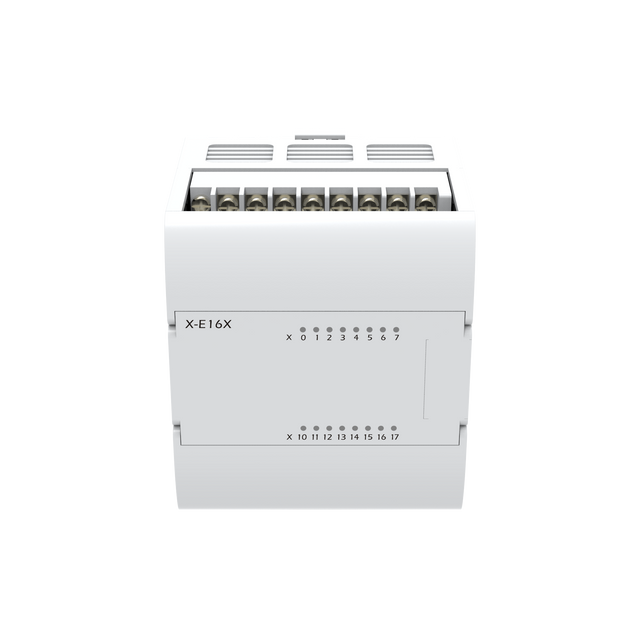

X series universal digital input expansion module, 16DI, 24VDC.
| Number of digital input points | fixed input |
| input type | PNP/NPN |
| Rated voltage | 24VDC, 4mA |
| Maximum continuous allowable voltage | 30V DC |
| surge voltage | 35VDC, 0.5 seconds |
| logic 1 [minimum] | At 15VDC, greater than 2.5mA |
| logic 0[max] | At 5VDC, less than 1mA |
| Allowable leakage current [max] | 1mA |
| isolation | Yes |
| Optical isolation | 500VAC for 1 minute |
WIRING DIAGRAM
STRUCTURE DIAGRAM
