Model
Technical Parameters
UH 404S
UH 404E
order number
UH 404-2AU01-0AA0
UH 404-2EU01-0AA0
Performance Specifications
LCD screen
4.3'TFT
display color
65535 colors
Resolution
480 ×272
Backlight type
LED
Display brightness
300cd/㎡
LCD life
30000 hours
Touch Type
4 -wire resistive
processor
1GHz quad-core frequency
storage
256MB FLASH+256MB DDR3
USB Host
USB2.0 x 1 , support U disk to update firmware, configure and store data
USB Slave
Type-C , support power supply, program upload and download
serial interface
COM1:RS485 COM2:RS232
Ethernet
not support
10M/100M adaptive
DB9
male head
Electrical Specifications
rated power
3W
Power supply
24V DC
input range
20.4~28.8V DC
Loss of power allowed
10ms
Insulation resistance
Over 50MΩ@500VDC
Pressure resistance
500V AC for 1 minute
Structural properties
shell color
creamy-white
Shell material
ABS+PC plastic
Dimensions
138 ×102×32mm
Hole Size
129 ×93mm
weight
0.4kg
Environmental Specifications
Operating temperature
0 ～50℃
Working humidity
10~90%RH ( non-condensing)
storage temperature
-20 ～60℃
Storage humidity
10~90%RH ( non-condensing)
Seismic performance
10~25Hz (X , Y, Z direction 2G/30 minutes)
cooling method
natural air cooling
certified product
Front panel protection level
Compliant with IP65 certification (4208-93
CE certification
Compliant with CE certification (EN61000-6-2:2005/EN61000-6-4:2007)

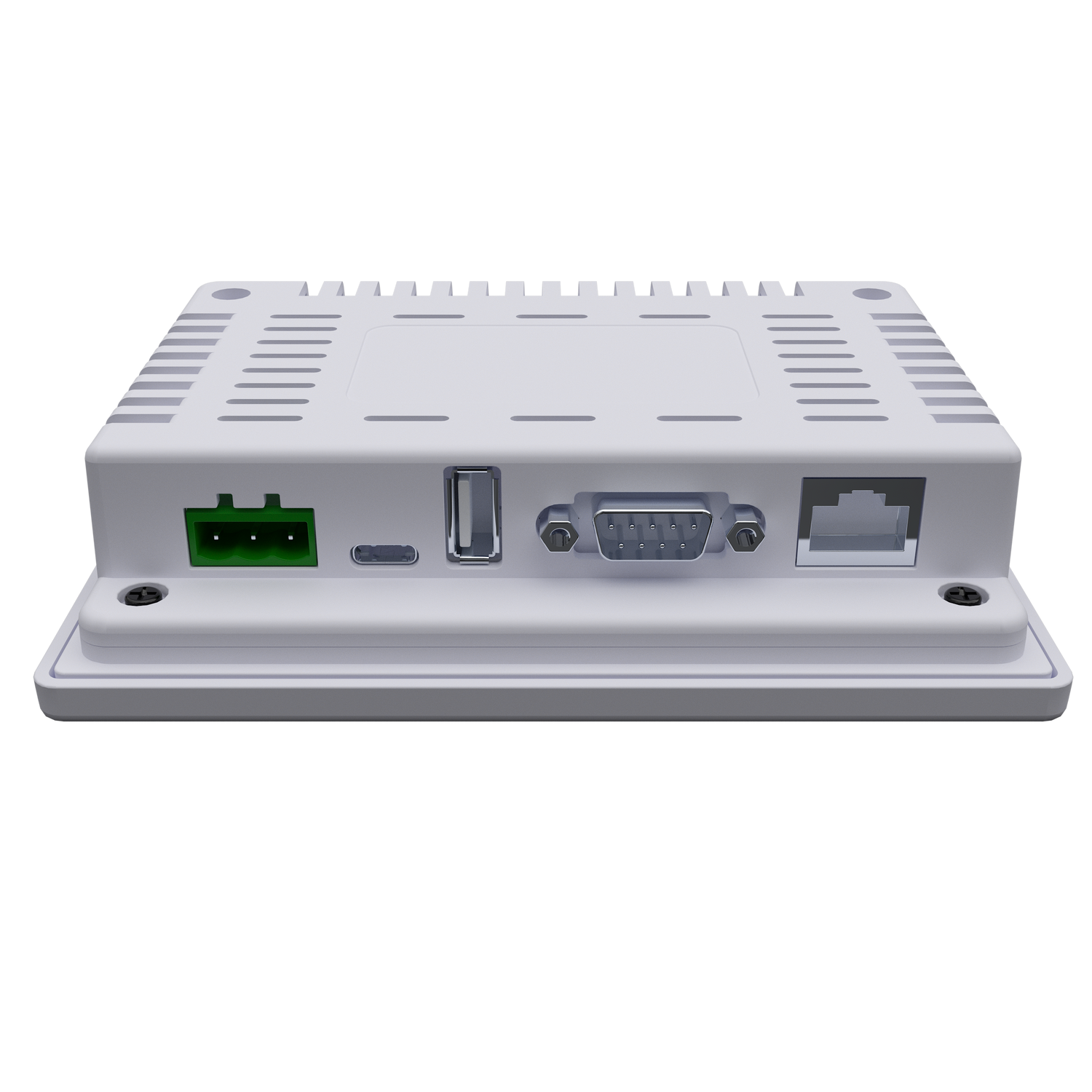

Side View
Dimensions (mm)
Structure diagram
