4 analog input, resolution 12 bits, 24V DC
Circuit design supports no gain calibration, easy to use,
Strong anti-interference performance and stable.

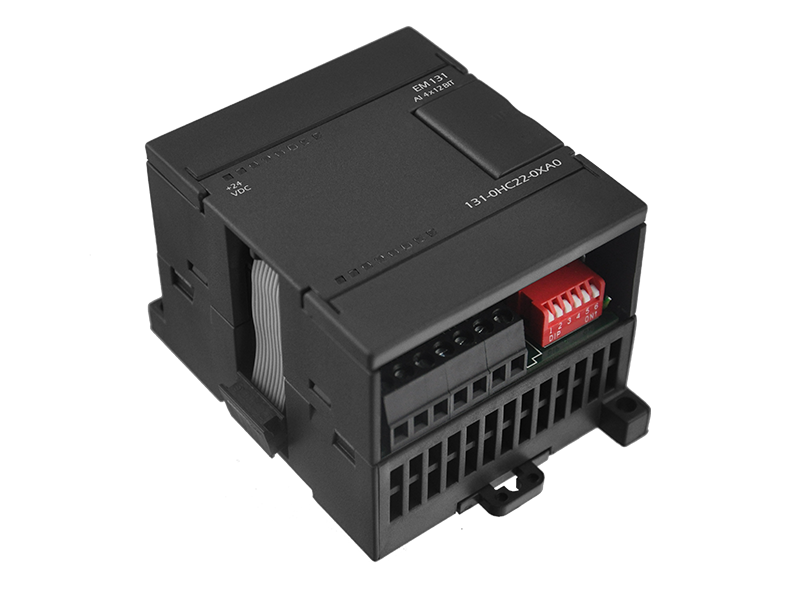

EM131 4AI x 12bits
Model No.
EM131 4AI x 12bits
Order No.
UN 131-0HC22-0XA0

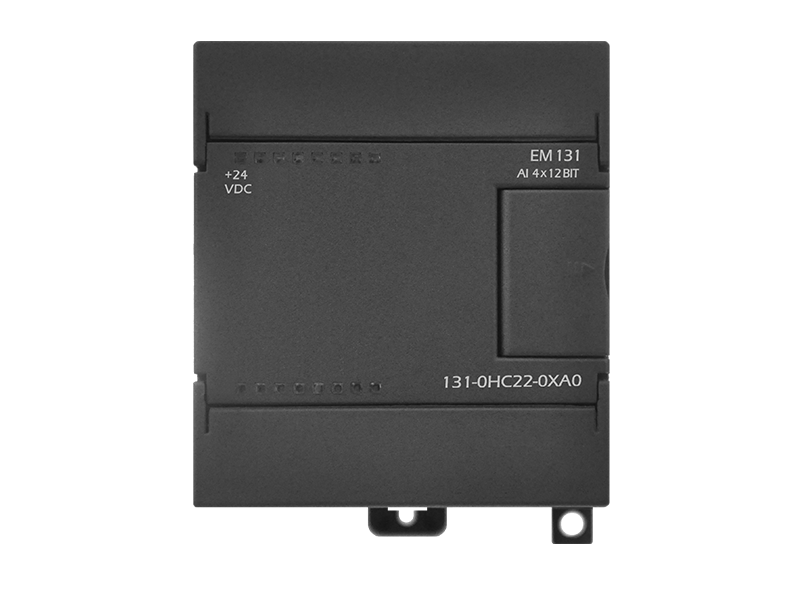

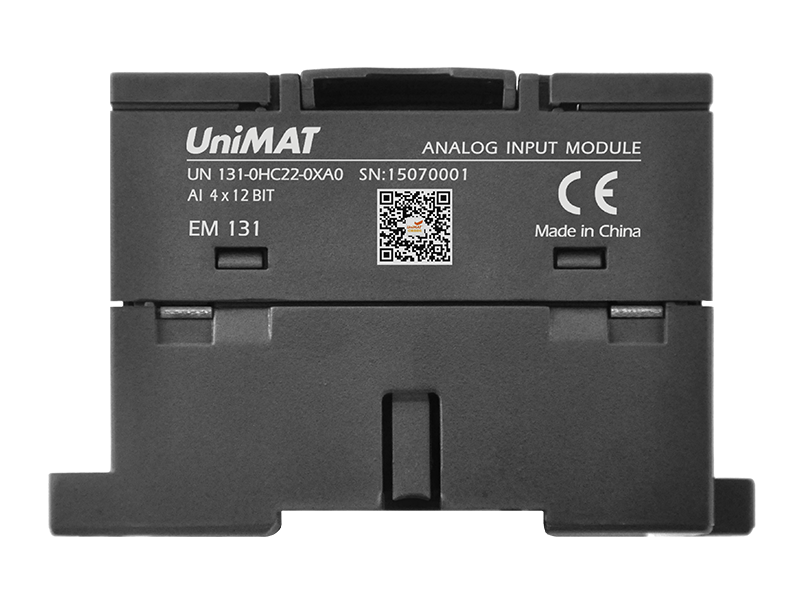

Side View
technical parameters
|
Product Description |
4AI,24V DC,Resolution:12bits, High immunity,stable |
|
Technical Specification |
|
|
From bus current consumption |
20mA |
|
From L+ current consumption |
60mA |
|
Power loss |
2W |
|
Number of analog Inputs |
4 |
|
Input type |
Differential |
|
Voltange input range: Unipolar |
0~5v,0~10V |
|
Voltange input range: Bipolar |
±2.5V,±5V |
|
input range:current |
0~20mA |
|
Resolution |
12 bit |
|
Bipolar,full-scale range |
-32,000 to +32,000 |
|
Unipolar, full-scale range |
0 to +32,000 |
|
Cable Length (unShielded) |
300m |
|
Input impedance |
≥10M Ω Voltage Input |
|
250 Ω Current Input |
|
|
Isolation tested for contact(field to logic) |
No |
|
Analog to digital conversion time |
<250µs |
|
Common-mode rejection |
40db,DC to 60Hz |
|
Common-mode voltage |
Signal voltage + Common-mode voltage≤12V |
|
Maximum input voltage |
30V DC |
|
Maximum input current |
32mA |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
Wiring diagram
