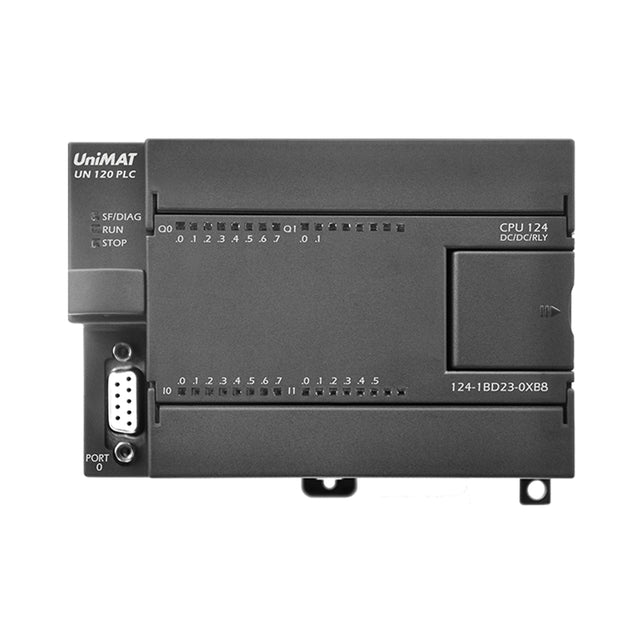

CPU124-1R DC/DC/RLY
• Excellent value for money;
• 14-point digital input, 10-point digital output, 4 modules can be expanded;
• Relay output;
• Using FLASH technology to keep power off for a long time, without battery support, data can be stored for up to 10 years;
• Unique AES iterative encryption algorithm to protect users' intellectual property rights;
• With 1 communication interface, supports PPI communication protocol.
|
model |
CPU 124-1R DC/DC/RLY |
|
physical properties |
|
|
Dimensions (W*H*D) |
120.5*80*62mm |
|
Power consumption |
7W |
|
Memory characteristics |
|
|
program memory |
10K |
|
data storage |
10K |
|
I/O Characteristics |
|
|
Local digital input |
14 inputs |
|
Local digital output |
10 outputs |
|
Digital I/O Image Area |
128 (64 in/64 out) |
|
Analog I/O image area |
32 (16 in/16 out) |
|
Maximum allowable expansion I/O modules |
4 modules |
|
General Features |
|
|
Total number of timers |
256 total, 4 1ms, 16 10ms, 236 100ms |
|
Total number of counters |
256 |
|
Power-down memory retention |
256 |
|
time interruption |
2 1ms resolution |
|
edge interrupt |
4 rising edges and/or 4 falling edges |
|
Analog potentiometer |
2 x 8-bit resolution |
|
clock |
built-in |
|
Integrated communication functions |
|
|
interface |
1 |
|
PPI bit rate |
9.6, 19.2 and 187.5kbps |
|
Maximum length of each cable |
With isolated interruption relays: 187.5kbps up to 1000 meters, 38.4kbps up to 1200 meters without isolated repeaters |
|
Maximum number of sites |
32 stations per segment, 126 stations per network |
|
Maximum number of master stations |
32 |
|
PPI master mode |
not support |
|
Power characteristics |
|
|
Input voltage |
20.4 to 28.8VDC |
|
electric shock |
12A at 28.8V DC |
|
Insurance |
3A 250V slow melting |
|
sensor current |
none |
|
bus current |
340mA |
|
Digital Input Characteristics |
|
|
Local integration of digital input points |
14 inputs |
|
input type |
PNP/NPN |
|
Rated voltage |
24VDC, 4mA |
|
Maximum continuous allowable voltage |
30V DC |
|
surge voltage |
35VDC, 0.5 seconds |
|
logic 1 [minimum] |
15VDC 2.5mA |
|
logic 0[max] |
5VDC 1mA |
|
input filter |
1-13ms |
|
Allowable leakage current [max] |
1mA |
|
isolation |
Yes |
|
Optical isolation |
500VAC for 1 minute |
|
high-speed counter |
20K single phase |
|
Digital output characteristics |
|
|
Local integrated digital output points |
10 outputs |
|
output type |
dry contact |
|
Rated voltage |
24VDC or 250VAC |
|
voltage range |
5-30VDC 5-250VAC |
|
Inrush current (max) |
5A 4s 10% duty cycle |
|
logic 1 (minimum) |
- |
|
logic 0 (max) |
- |
|
Rated current per point (max) |
2A |
|
Current rating per common (max) |
8A |
|
Leakage current [max] |
- |
|
Lamp load [max] |
30W DC/200W AC |
|
Inductive clamping voltage |
- |
|
On-resistance [contact] |
0.2Ω |
|
Pulse frequency [max] |
1Hz |
|
mechanical life cycle |
10000000 (no load) |
|
Contact life |
100000 (rated load) |
|
Two outputs in parallel |
no |
|
Environmental parameters |
|
|
Working temperature |
0℃～＋60℃ |
|
Transport ambient temperature |
-20℃-80℃ |
|
Ambient relative humidity |
5~90% |
|
Protection class |
IP20 |
