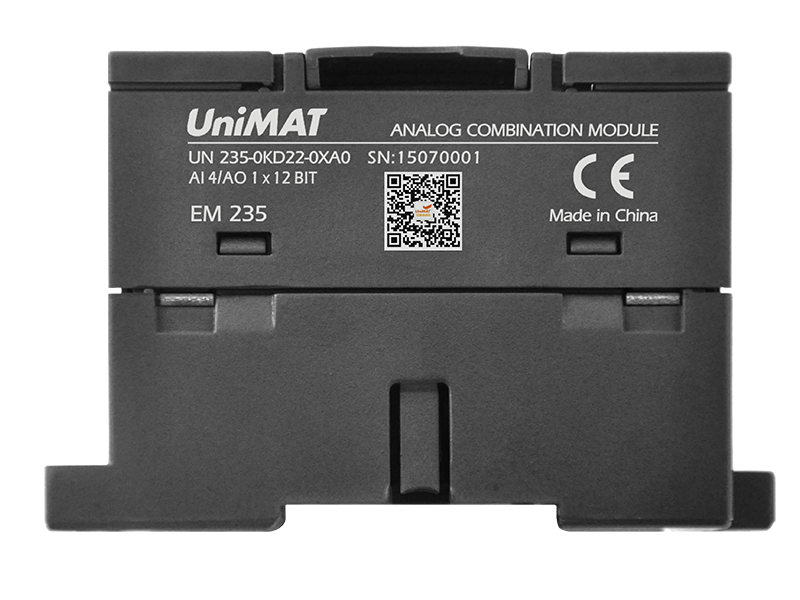

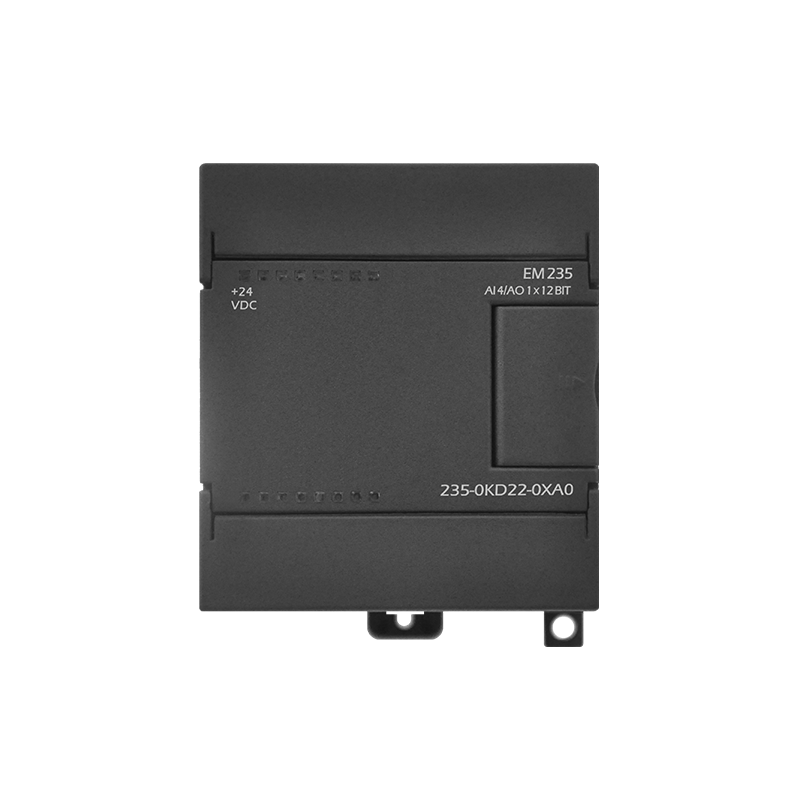

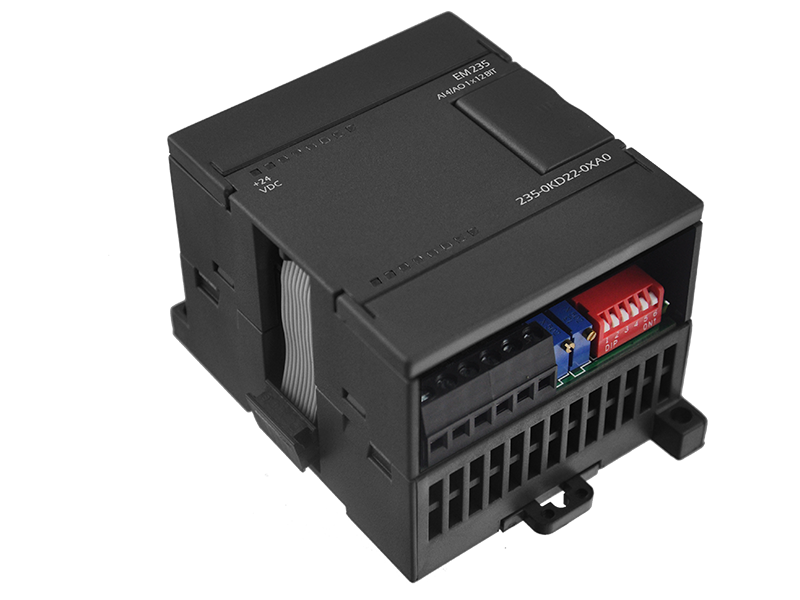

EM235 4AI/1AOx12bits
4AO;Resolution:16bits;
12 bits resolution voltage output;
11 bits resolution current output
|
Product Description |
4AI,1AO; 12 bits resolution voltage output; 11 bits resolution current output |
|
Input Feature |
|
|
From bus current consumption |
30mA |
|
From L+ current consumption |
60mA |
|
Power loss |
2W |
|
Number of analog Input |
4 |
|
Signal input type |
Differential |
|
Maximum input voltage |
30V |
|
Maximum input current |
32mA |
|
Voltange input range: Unipolar |
0~50mV, 0~100mV,0~500mV,0~1V,0~5V,0~10V |
|
Voltange input range: Bipolar |
±1V, ±2.5V, ±5V, ±10V ±25mV, ±50mV, ±100mV, ±250mV, ±500mV, |
|
current input range |
0~20mA, |
|
Resolution |
12bits |
|
Bipolar,full-scale range |
0~32,000 |
|
Unipolar, full-scale range |
-32，000~+32，000 |
|
Analog to digital conversion time |
<250µs |
|
Output Feature |
|
|
Number of analog Input |
1 |
|
Input voltage range |
-10~+10V |
|
Input current range |
0~20mA |
|
Load inpedance |
|
|
·for voltage outputs |
Min:5KΩ |
|
·for current outputs |
Max:0.5KΩ |
|
Resolution |
12 bits voltage output; 11 bits current output |
|
Data word format |
|
|
·Displayable:voltage output |
-32，000~+32，000 |
|
·Displayable:current output |
0~32，000 |
|
Basic error |
±0.5% of full range |
|
Dimensions(W x H x D)(mm) |
71.2×80×62 |
