4AO;
Resolution:12bits; High-accuracy

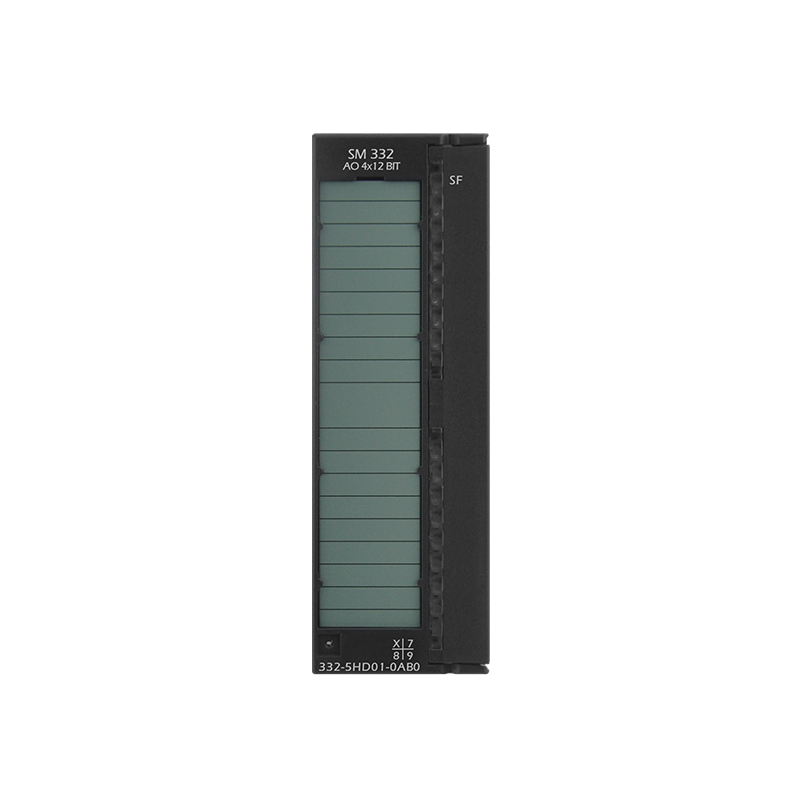

UN 332-5HD01-0AB0
Model No.
SM332 4AO
Order No.
UN 332-5HD01-0AB0

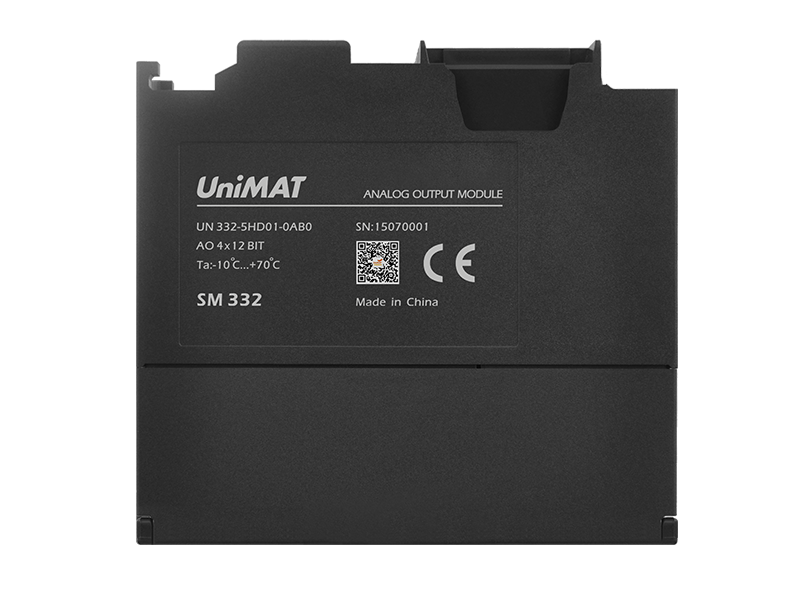

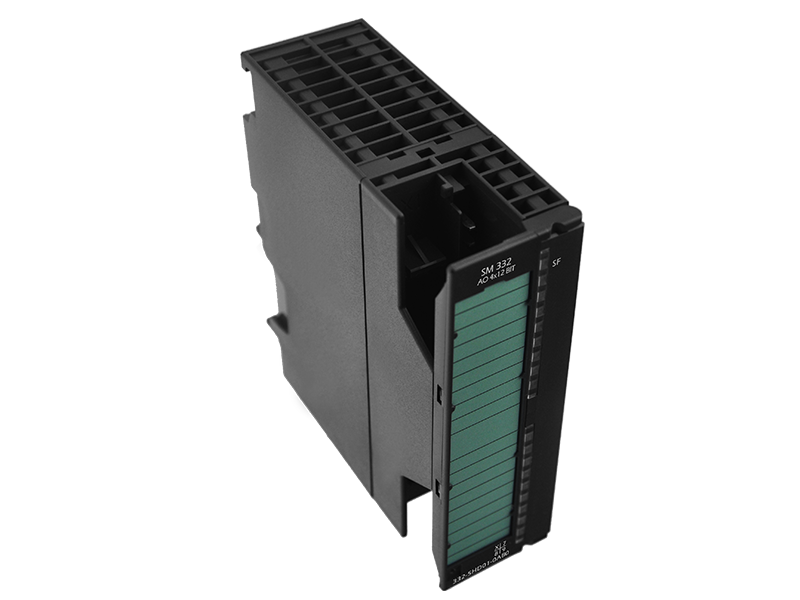

Side View
technical parameters
|
Product Description |
4AO; Resolution:12bits; High-accuracy |
|
Power consumption |
|
|
·From bus current consumption |
40mA |
|
·From L+ |
40mA |
|
·Power loss |
3W |
|
Number of analog outputs |
4 |
|
Load voltage+rated value |
24V |
|
Shielded cable length,Max |
200m |
|
Voltage output, Max,short circuit Current |
Yes |
|
Voltage output, Short circuit current(Max) |
25mA |
|
Voltage output, Open-circuit current,Max |
18V |
|
Load impedance |
|
|
·Voltage outputs,Min |
1KΩ |
|
·current outputs,Max |
500Ω |
|
Output ranges |
|
|
·voltage |
±10V,0~10V,1~5V |
|
·current |
±20mA,0~20mA,4~20mA |
|
D/A resolution |
12bit |
|
conversion time(per channel) |
Max:0.8ms |
|
Setting time |
|
|
·Resistive loads |
0.1ms |
|
·Capacitive loads |
3.3ms |
|
·Inductive loads |
0.5ms |
|
Output cross talk |
>40dB |
|
Tolerance(Over entire temperature range) |
|
|
·Voltage output |
±0.5% |
|
·Current output |
±0.6% |
|
Diagnostic interrupt |
None |
|
Group fault error |
Red LED |
|
Isolution tested for contact |
|
|
·Between channels and backplane bus |
Yes |
|
·Between channels and load voltage L+ |
Yes |
|
Front connector |
20-pin |
|
Dimensions(W x H x D)(mm) |
40×125×120 |
Wiring diagram
