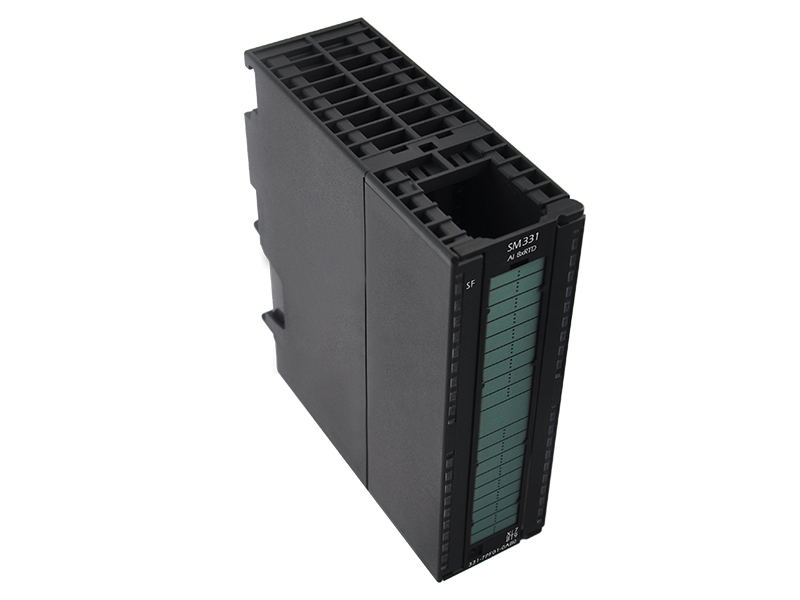

RTD temperature measurement modules; stable
UN 331-7PF01-0AB0
Model No.
SM331 8AI RTD
Order No.
UN 331-7PF01-0AB0

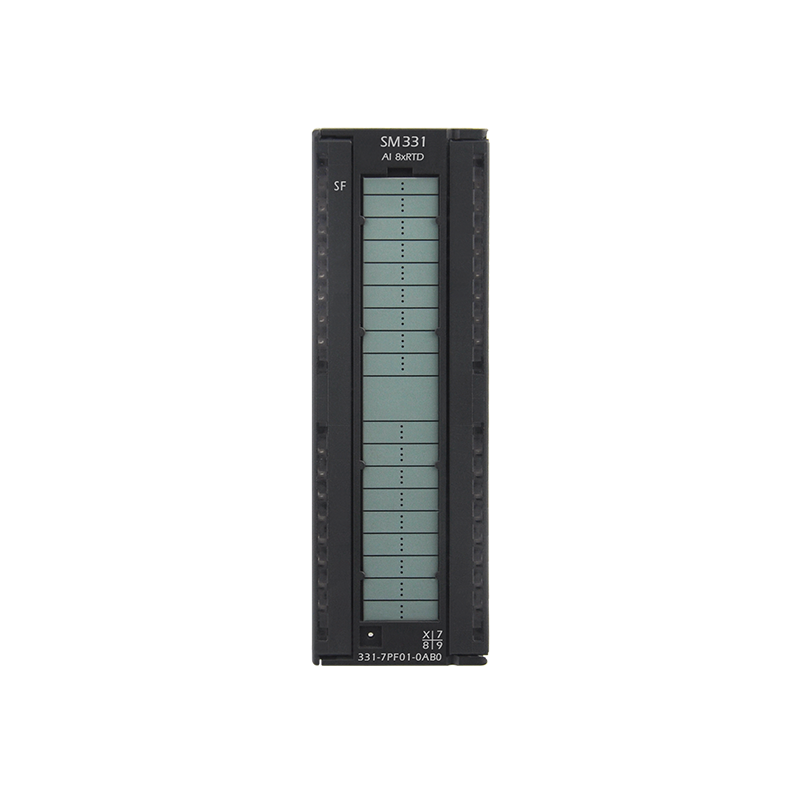

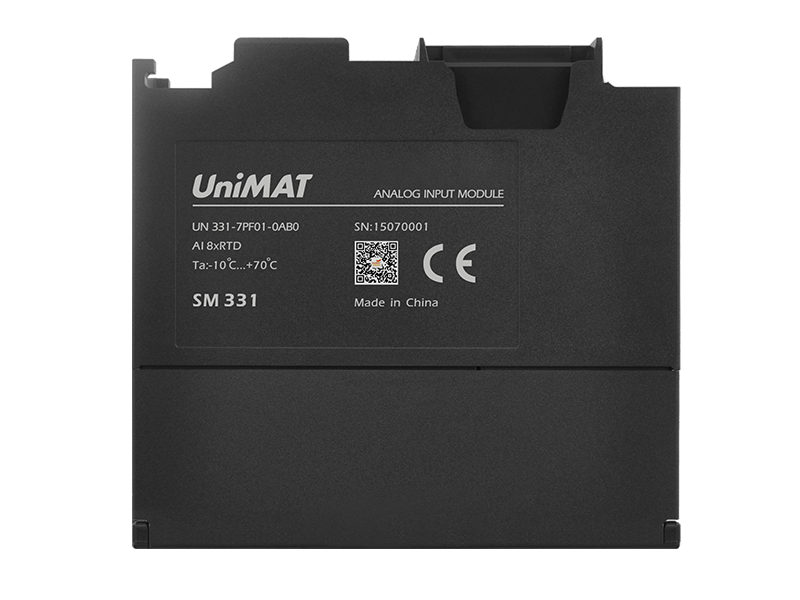

Side View
technical parameters
|
Product Description |
8AI; RTD temperature measurement modules; stable |
|
Power consumption |
|
|
·Rate value |
24V DC |
|
·From backplane bus current consumption |
50mA |
|
·From L+ |
40mA |
|
·Power loss |
1W |
|
The power of transmitter |
|
|
·Supply current |
/ |
|
·short-circuit protection |
/ |
|
Number of analog inputs |
8 |
|
Cable Length (Shielded) |
Max:200m |
|
Input type and input range |
|
|
·voltage |
/ |
|
·current(4wire) |
/ |
|
·current(2wire) |
/ |
|
·tesistance |
150Ω, 300Ω, 600Ω, |
|
·thermocouple |
/ |
|
·RTD |
Pt10、 Pt50、Pt100, Pt200、 Pt500、 Pt1000、 Ni100、Ni120、Ni200,Ni500、Ni1000、Cu10(9.035)、Cu50、Cu100 |
|
A/D resolution |
16bits |
|
Basic conversion time(per channel) |
190ms |
|
Interference frequency suppression |
400/50/60Hz |
|
Tolerance(Over entire temperature range) |
|
|
·Voltage |
/ |
|
·Current |
/ |
|
·resistance |
±0.1% |
|
·temperature |
±1℃ |
|
Interrupts |
|
|
Diagnostic interrupt |
Per group Yes,Configurable |
|
Limit-value interrupt |
Yes,Configurable |
|
Isolation tested for contact |
|
|
·Between channels |
Yes |
|
·Between channels and backplane bu |
Yes |
|
Front connector |
40-pin |
|
Dimensions(W x H x D)(mm) |
40×125×120 |
Wiring diagram
