8AI;voltage/current/RTD temperature measurement modules; Resolution:13bits
Optical isolation; high immunity;stable.

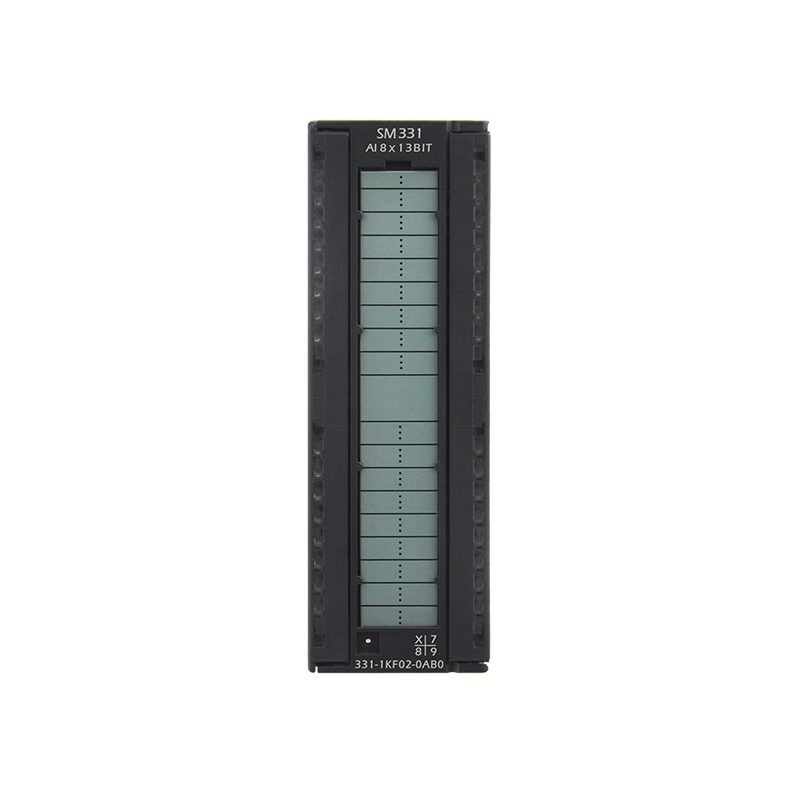

UN 331-1KF02-0AB0
Model No.
SM331 8AI
Order No.
UN 331-1KF02-0AB0

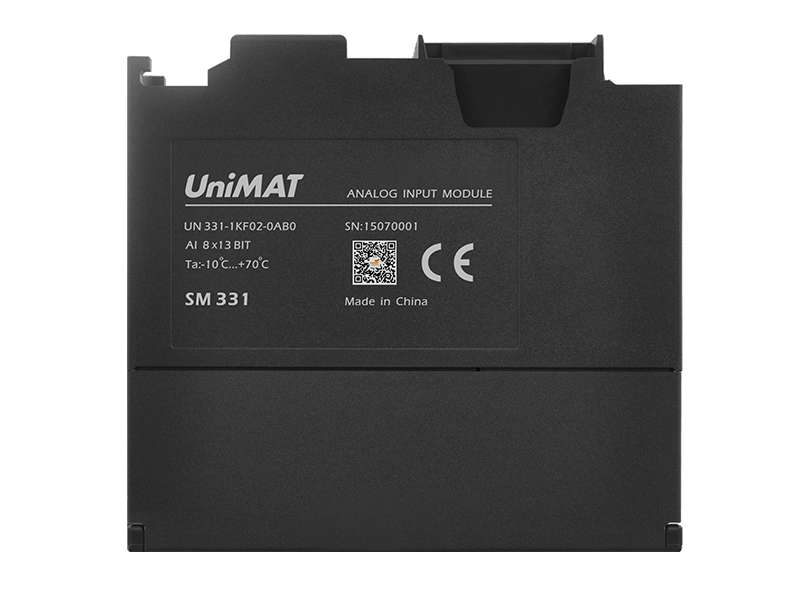

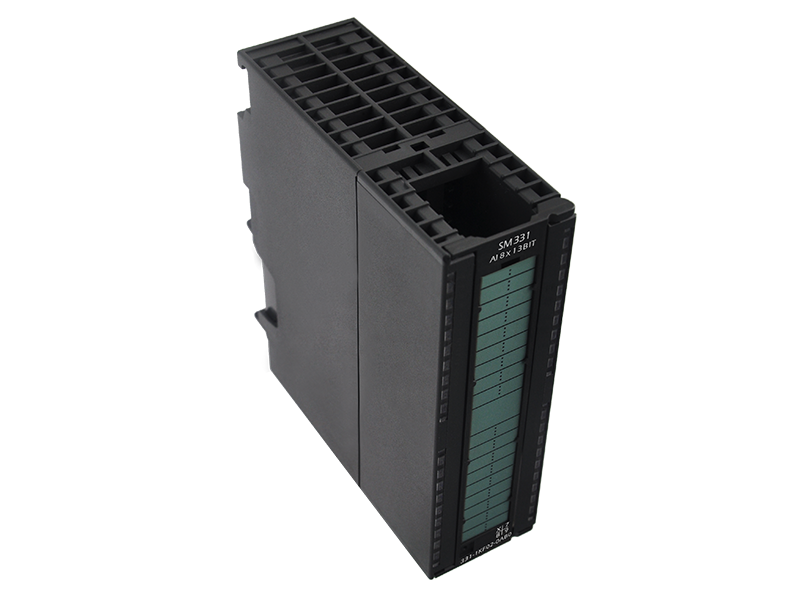

Side View
technical parameters
|
Product Description |
8AI; voltage/current/RTD temperature measurement modules;Resolution:13bits Optical isolation; high immunity;stable |
|
Power consumption |
|
|
·Rate value |
/ |
|
·From backplane bus current consumption |
90mA |
|
·From L+ |
/ |
|
·Power loss |
0.4W |
|
The power of transmitter |
|
|
·Supply current |
/ |
|
·short-circuit protection |
/ |
|
Number of analog inputs |
8 |
|
Cable Length (Shielded) |
Max:200m |
|
Input type and input range |
|
|
·voltage |
1~5V,0~10V,±50mV ±500mV, ±1V, ±5V, ±10V |
|
·current(4wire) |
±20mA, 0~20mA, 4~20mA |
|
·current(2wire) |
/ |
|
·tesistance |
600Ω,6KΩ |
|
·thermocouple |
/ |
|
·RTD |
Pt100(-200℃-850℃) |
|
A/D resolution |
13bits |
|
Basic conversion time(per channel) |
66/55ms |
|
Interference frequency suppression |
50/60Hz |
|
Tolerance(Over entire temperature range) |
|
|
·Voltage |
±0.6% |
|
·Current |
±0.6% |
|
·resistance |
±0.6% |
|
·temperature |
±1℃ |
|
Interrupts |
|
|
Diagnostic interrupt |
None |
|
Limit-value interrupt |
None |
|
Isolation tested for contact |
|
|
·Between channels |
None |
|
·Between channels and backplane bu |
Yes |
|
Front connector |
40-pin |
|
Dimensions(W x H x D)(mm) |
40×125×120 |
Wiring diagram
