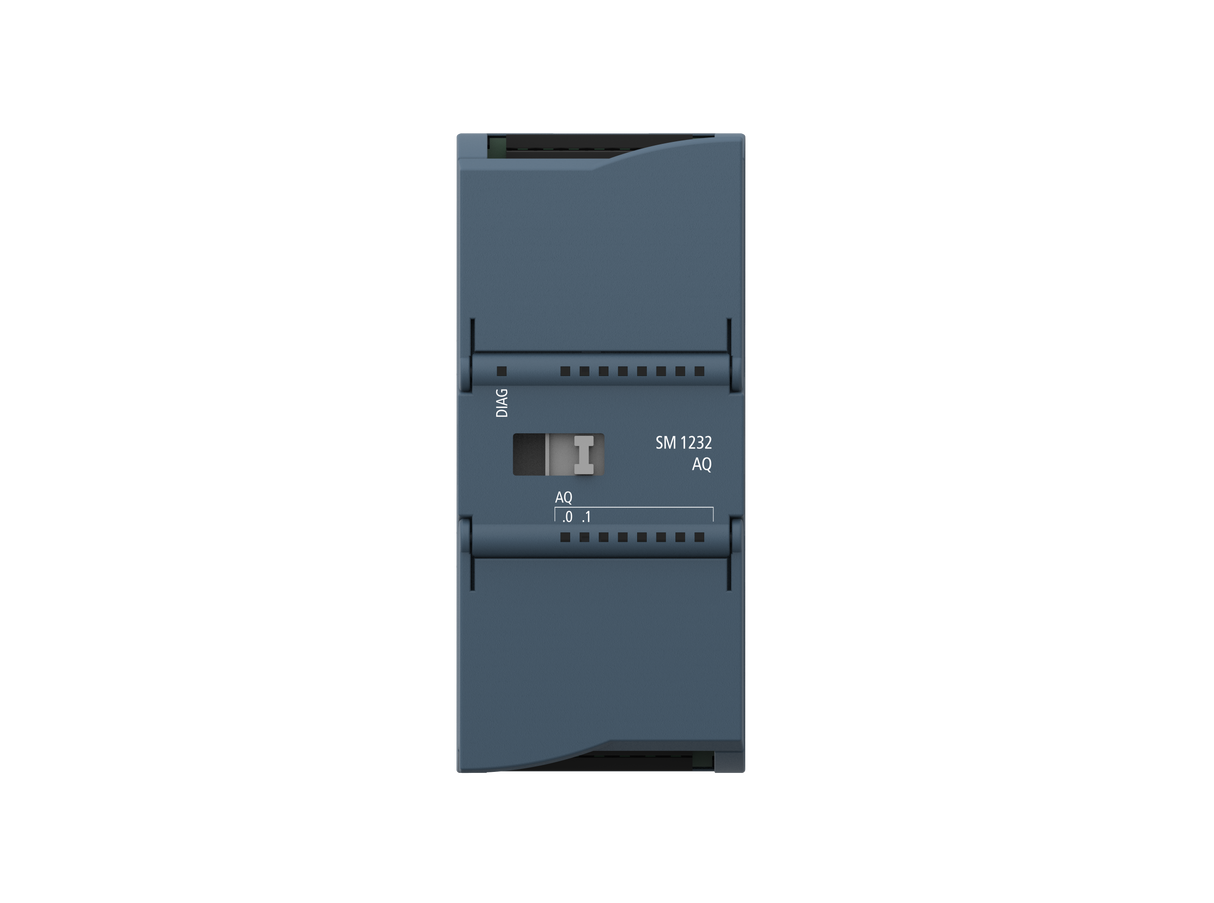

UN 232-4HB32-0XB0

SM 1231 Analog input 1200PLC Module which is similar as Siemens S7-1200 PLC

1) SM 1232 Analog output 2AO 14-bit resolution
2) Compatible with Siemens 6es7 232-4HB32-0XB0
3) Analog module;
4) Could connect with Siemens 1200 CPU and Modules;
5) 3-year warranty;
6) 2-3 working days after payment can ship;
7) Material: ABS, IC

Model SM 1232 AQ 2x14bit
Order number
General
dimension W x H x D ( m m ) 45x100x75
weight 180g
Power consumption 1.8W
Current consumption (SM bus) 80 mA
Current consumption (24VDC) 45mA(no load)
Analog output
Number of output channels 2
Type Voltage or current
Range ±10V, 0-20 mA or 4-20 mA
Resolution Voltage:14 bits; Current: 13 bits
Full scale range (data word) Voltage; -27,648-27,648;Current:0-27,648
Accuracy (25ºC/0-55ºC) ±0.3%±0.6% of full scale
Stabilization time (95% of new value) Voltage:300μS(R),750μS(1uF);Current:600μS(1mH),2ms(10mH)
Load impedance Voltage:≥1000Q;Current:≤600Ω
Behavior during RUN-STOP Previous value or replacement value (default value is 0)
Isolation (field side and logic side) None
Cable length (meter) 100 meters, shielded twisted pair
Diagnosis
Overflow/Underflow √
Short circuit to ground (voltage  only) √
Open circuit (current mode only) √
24VDC low voltage √

unimat

UN 232-4HB32-0XB0

SM 1231 Analog input 1200PLC Module which is similar as Siemens S7-1200 PLC

1) SM 1232 Analog output 2AO 14-bit resolution
2) Compatible with Siemens 6es7 232-4HB32-0XB0
3) Analog module;
4) Could connect with Siemens 1200 CPU and Modules;
5) 3-year warranty;
6) 2-3 working days after payment can ship;
7) Material: ABS, IC

Model SM 1232 AQ 2x14bit
Order number
General
dimension W x H x D ( m m ) 45x100x75
weight 180g
Power consumption 1.8W
Current consumption (SM bus) 80 mA
Current consumption (24VDC) 45mA(no load)
Analog output
Number of output channels 2
Type Voltage or current
Range ±10V, 0-20 mA or 4-20 mA
Resolution Voltage:14 bits; Current: 13 bits
Full scale range (data word) Voltage; -27,648-27,648;Current:0-27,648
Accuracy (25ºC/0-55ºC) ±0.3%±0.6% of full scale
Stabilization time (95% of new value) Voltage:300μS(R),750μS(1uF);Current:600μS(1mH),2ms(10mH)
Load impedance Voltage:≥1000Q;Current:≤600Ω
Behavior during RUN-STOP Previous value or replacement value (default value is 0)
Isolation (field side and logic side) None
Cable length (meter) 100 meters, shielded twisted pair
Diagnosis
Overflow/Underflow √
Short circuit to ground (voltage  only) √
Open circuit (current mode only) √
24VDC low voltage √
