UN 231-5QF32-0XB0

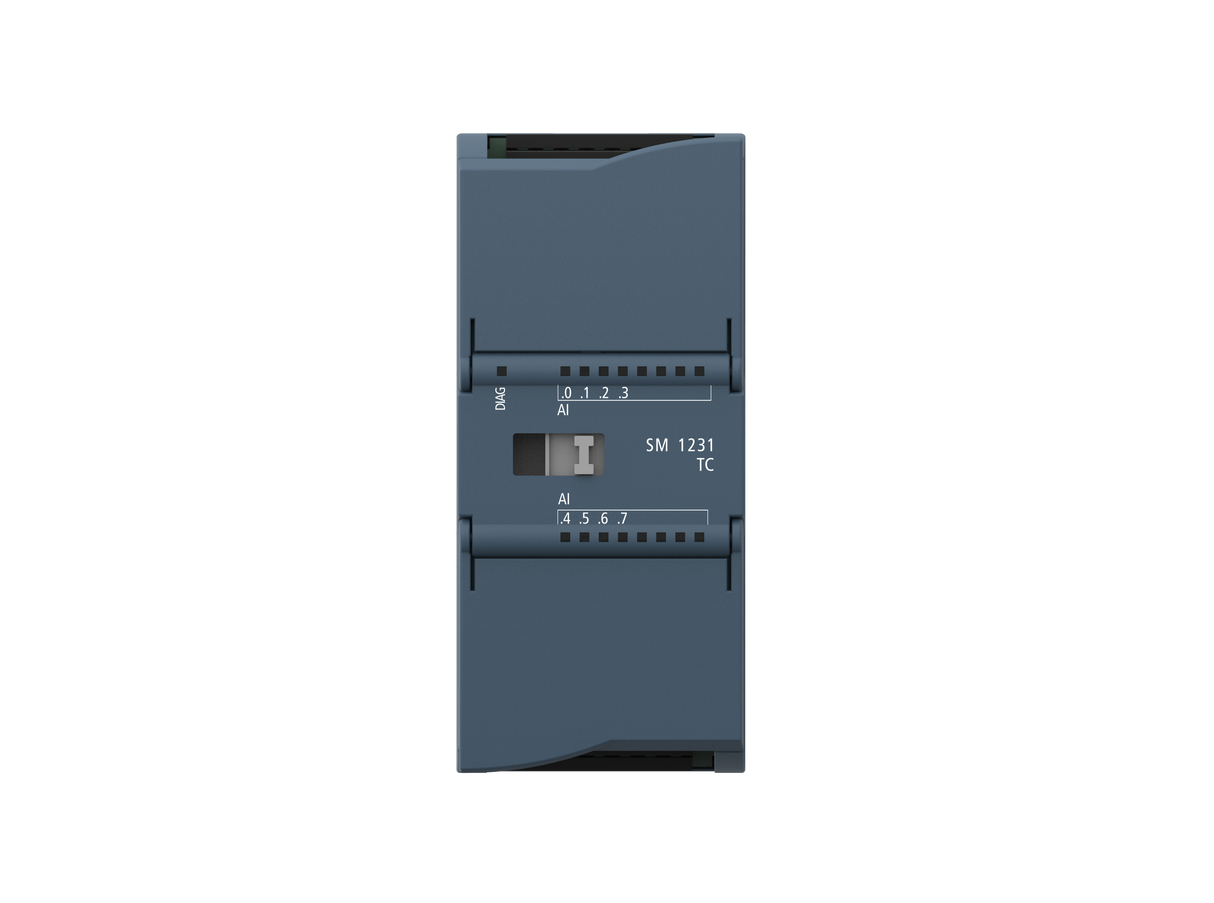

SM 1231 Analog input 1200PLC Module which is similar as Siemens S7-1200 PLC
1) SM 1231 8TC 16-bit resolution
2) Compatible with Siemens UN231-5QF32-0XB0;
3) Analog module;
4) Could connect with Siemens 1200 CPU and Modules;
5) 3-year warranty;
6) 2-3 working days after payment can ship;
7) Material: ABS, IC
| Model | SM1231Al8×16 bits TC |
| Order number | UN 231-5QF32-0XB0 |
| General | |
| Dimension W x H x D ( mm ) | 45×100×75 |
| Weight | 190 g |
| Power consumption | 1.5 W |
| Current consumption (SM bus) | 80 mA |
| Current consumption (24 VDC) | 40 mA |
| Analog input | |
| Number of input channels | 8 |
| Type | TC |
| Range | J,K,T,E,R,S,B,N,C,TXK/XK(L),Voltage range: +/-80 mv |
|
Resolution Temperature Resistance |
0.1ºC/0.1F 15 bits + sign bit |
| Maximum withstand voltage | ±35 V |
| Noise suppression | 85 dB,10 Hz/50 Hz/60 Hz/400 Hz |
| Common mode rejection | >120 dB at 120VAC |
| Impedance | ≥10 MQ |
|
Isolation Field side and logic side On-site side and 24VDC side 24 V DC side and logic side |
707V DC(Type test) |
| Channel-to-channel isolation | 120VAC |
| Repeatability | ±0.05 %FS |
| Measurement principle | Integral |
| Cold junction error | ±1.5 ºC |
| Cable length (meter) | Maximum length to sensor 100 m |
| Cable resistance | Max 100Q |
| Diagnosis | |
| Overflow/Underflow | √ |
| Break circuit | √ |
| 24V DC low voltage | √ |
