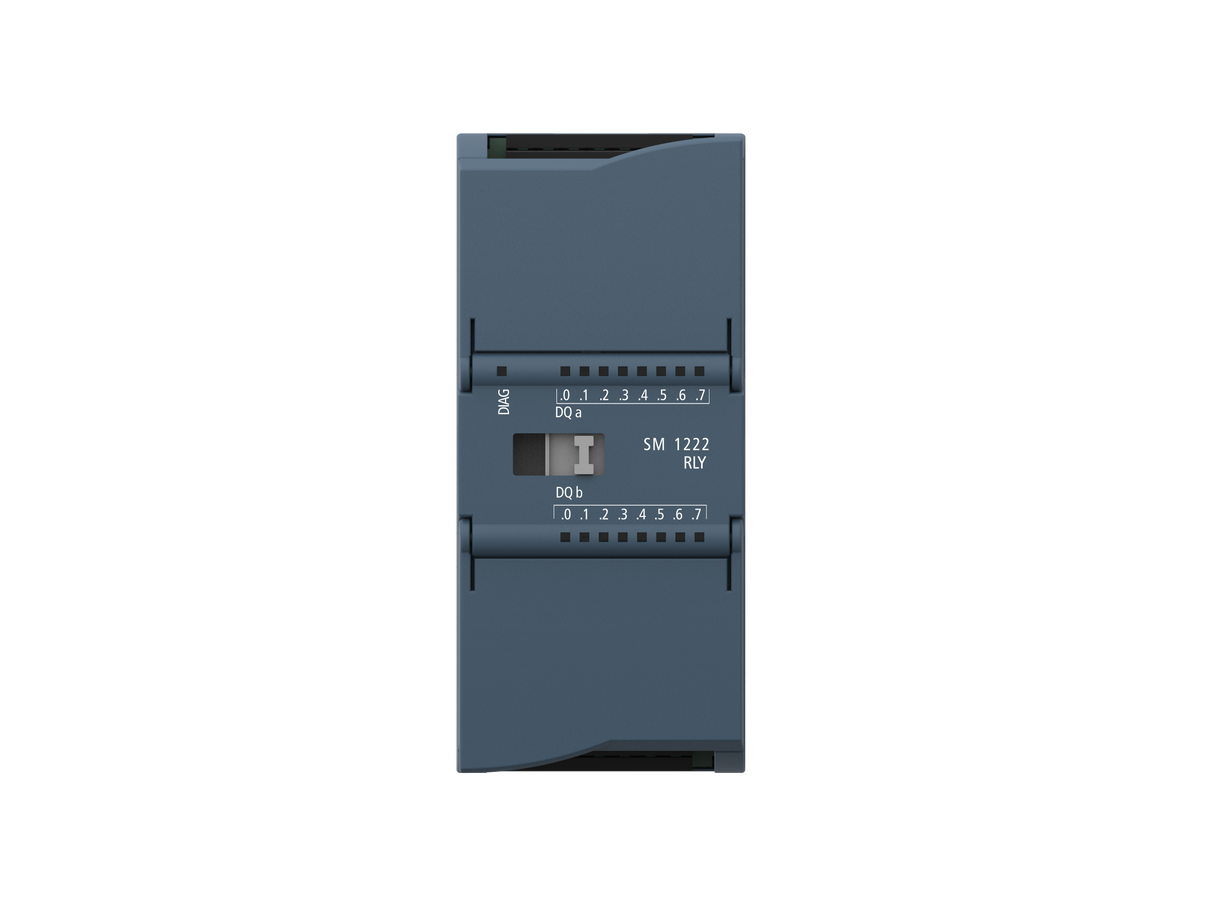

UN 222-1HH32-0XB0

SM 1222 Digital output Module which is similar as Siemens S7-1200 PLC

1) SM 1222 Digital output, 16 DO Relay
2) Compatible with Siemens 6es7 222-1HH32-0XB0
3) Digital module;
4) Could connect with Siemens 1200 CPU and Modules;
5) 3-year warranty;
6) 2-3 working days after payment can ship;
7) Material: ABS, IC

Model SM 1222 DQ 8×RLY SM 1222 DQ 16×RLY SM 1222 DQ 8×24VDC SM 1222 DQ 16×24 V DC
Order number UN 222-1HF32-0XB0  UN 222-1HH32-0XB0 UN 222-1BF32-0XB0 UN 222-1BH32-0XB0
General
Dimension W x H x D ( m m ) 45x100×75   45x100x75      45x100x75 45×100×75
Weight 190g 260 g 180 g 220g
Power consumption 4.5 W 8.5 W   1.5 W   2.5 W
Current consumption (24VDC) 7 mA per relay coil used 7 mA per relay coil used 50mA 100 mA
Current consumption (SM bus) 120 mA 135 mA 120 mA 140 mA
Digital output
Output points 8  16     8 16
Voltage range 5 - 3 0 V D C or 5 - 2 5 0 V A C
20.4 -28.8V DC
Type Relay, dry contact Relay, dry contact Solid - MOSFET (source type)
Logic 1 signal at maximum current ----
Min 2 0 V D C
Logic 0 signal with 10 KQ load ----
Max 0.1V DC
Current (maximum) 2.0A
0.5 A
Lamp load 30 W DC/200 WAC
5W
On-state contact resistance 0.2 Ω maximum for new equipment
Max 0.6 Ω
Leakage current per point ---
Max 10μA
Inrush current 7A with contacts closed
8 A, maximum duration 100
Overload protection None


Isolation (field side and logic side) 1500VAC (coil and contacts)None (coil and logic side) 1500VAC (coil and contacts)None(coil and logic side) 707V DC (type test)
Isolation group 2    4 1 1
Current per common terminal (maximum) 10 A 10 A 4 A 8A
Inductor clamping voltage -
L+ - 48 V, 1W loss
Switching delay Maximum 10 ms
The longest time from disconnection to connection is 50μs
The longest time from connecting to disconnecting is 200μs
Mechanical life (no load) 10,000,000 open/close cycles
-
Contact life under rated load 100,000 open/close cycles
-
Behavior during RUN -STOP Previous value or replacement value (default value is 0)
Number of outputs switched on simultaneously
8 		*8 (no adjacent points), at 60ºC (horizontal) or 50^ºC (vertical) *16.559ºC (horizontal) or 45ºC (vertical)
8
16
