UN 223-1PH32-0XB0

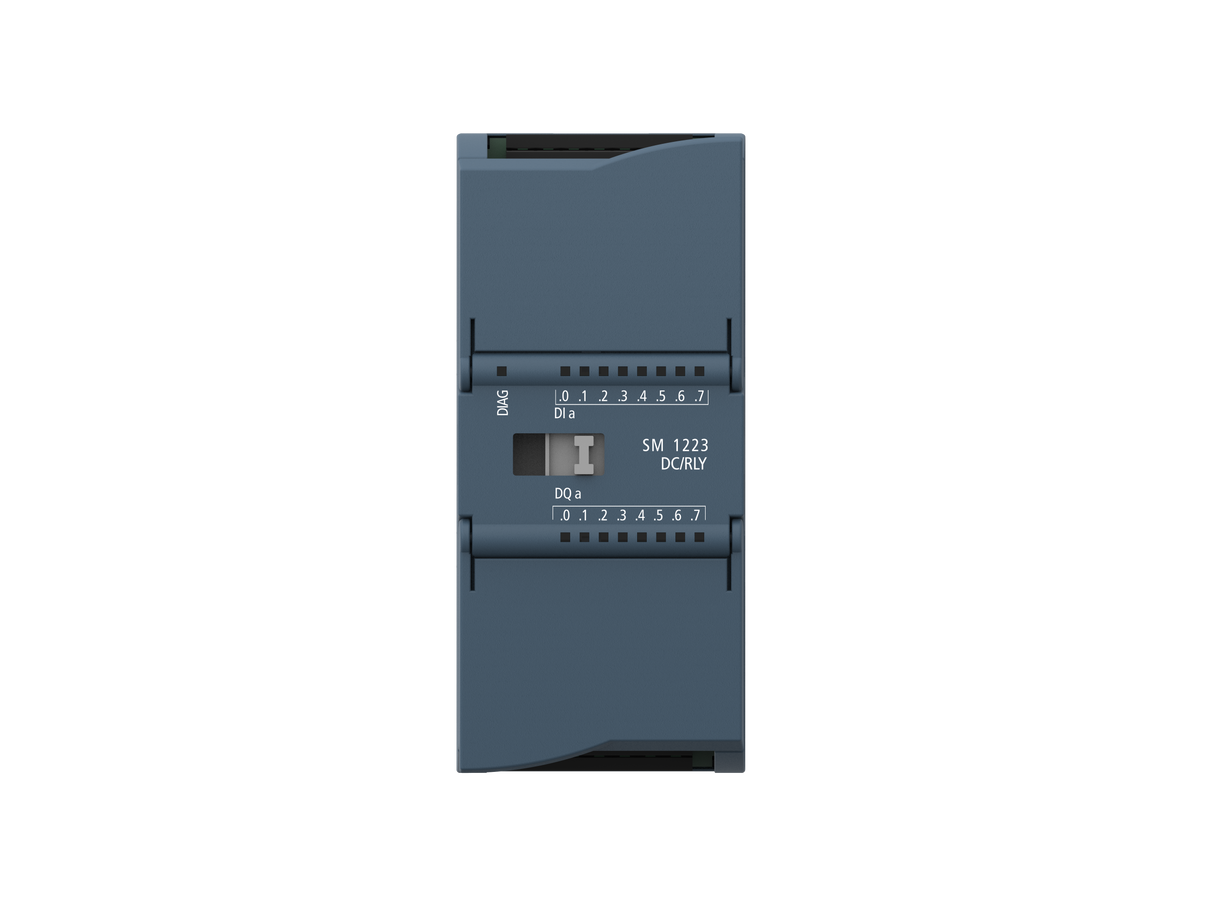

SM 1223 Digital input/output Module which is similar as Siemens S7-1200 PLC
1) SM 1223 Digital input/output 8DI 24V DC/ 8DO Relay
2) Compatible with Siemens 6es7 223-1PH32-0XB0
3) Digital module;
4) Could connect with Siemens 1200 CPU and Modules;
5) 3-year warranty;
6) 2-3 working days after payment can ship;
7) Material: ABS, IC
| Model |
SM 1223 DI 8x24 V DC DQ 8×RLY |
|||
| Order number | UN 223-1PH32-0XB0 | |||
| dimensionWxHxD(mm) | 45x100x75 | |||
| weight | 230 g | |||
| Power consumption | 5.5 W | |||
| Current consumption (SM bus) | 145 mA | |||
| Current consumption (24VDC) |
Each point input used is 4mA 7mA per relay coil used |
|||
| Digital input | ||||
| Enter points | 8 | |||
| Type | Sink/Source type (IEC Class 1 sink type) | |||
| Rated voltage | 24V DC at 4 mA, nominal | |||
| Allowed continuous voltage | Max 30V DC | |||
| Surge voltage | 35VDC, lasting 0.5s | |||
| Logic 1 signal (minimum) | 2. 15V DC at 5mA | |||
| Logic 0 signal (maximum) | 5 V DC at 1 mA | |||
| Isolation (field side and logic side) | 707VDC (type test) | |||
| Isolation group | 2 | |||
| Filter time | 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8ms (selectable, 4 in a group) | |||
| Number of inputs connected simultaneously | 8 | |||
| Cable length (meter) | 500 (shielded); 300 (unshielded) | |||
| Digital output | ||||
| Output points | 8 | |||
| Type | Relay, dry contact | |||
| Voltage range | 5-30VDC or 5-250VAC | |||
| Logic 1 signal at maximum current | - | |||
| Logic 0 signal with 10 KQ load | - | |||
| Current (maximum) | 2.0A | |||
| Lamp load | 30 W DC/200 WAC | |||
| On-state contact resistance | 0.2 Ω maximum for new equipment | |||
| Leakage current per point | - | |||
| Inrush current | 7A with contacts closed | |||
| Overload protection | None | |||
| Isolation (field side and logic side) |
1500VAC (coil and contacts) None (coil and logic side) |
|||
| Isolation group | 2 | |||
| Current at each common terminal | 10 A | |||
| Inductor clamping voltage | -- | |||
| Switching delay | Maximum 10 ms | |||
| Mechanical life (no load) | 10,000,000 open/close cycles | |||
| Contact life under rated load | 100,000 open/close cycles | |||
| Behavior during RUN-STOP | Previous value or replacement value (default value is 0) | |||
| Number of outputs switched on simultaneously | 8 | |||
| Cable length (meter) | 500(shielded);150(unshielded) | |||
