model
Technical Parameters
EM QT16
order number
UN 288-2QT16-0AA0
conventional
Dimensions W x H x D (mm)
45 x 100 x 81
power consumption
1.7W
Current Consumption (SM Bus)
120 mA
digital output
output points
16
type
Solid State - MOSFET (Source)
voltage range
20.4 ~ 28.8 V DC
Logic 1 signal at maximum current
20 V
Logic 0 signal with 10 KΩ load
0.1 V
Rated current per point (maximum)
0.75 A
lamp load
5W
On-state contact resistance
0.6 Ω
Leakage current per point
10 μA
Inrush current
8 A for 100 ms
overload protection
no
Isolation (field side and logic side)
500 V AC for 1 min
isolation resistance
-
Insulation between breaking contacts
-
isolation group
4
Current per common (maximum)
3 A
switch delay
Off-to-on max. 50 μs
On-to-off max. 200 μs
Mechanical life (no load)
-
Contact life under rated load
-
Output status in STOP mode
previous value or replacement value (default is 0)
Simultaneously connected outputs
16
cable length
500 m (shielded), 150 m (unshielded)

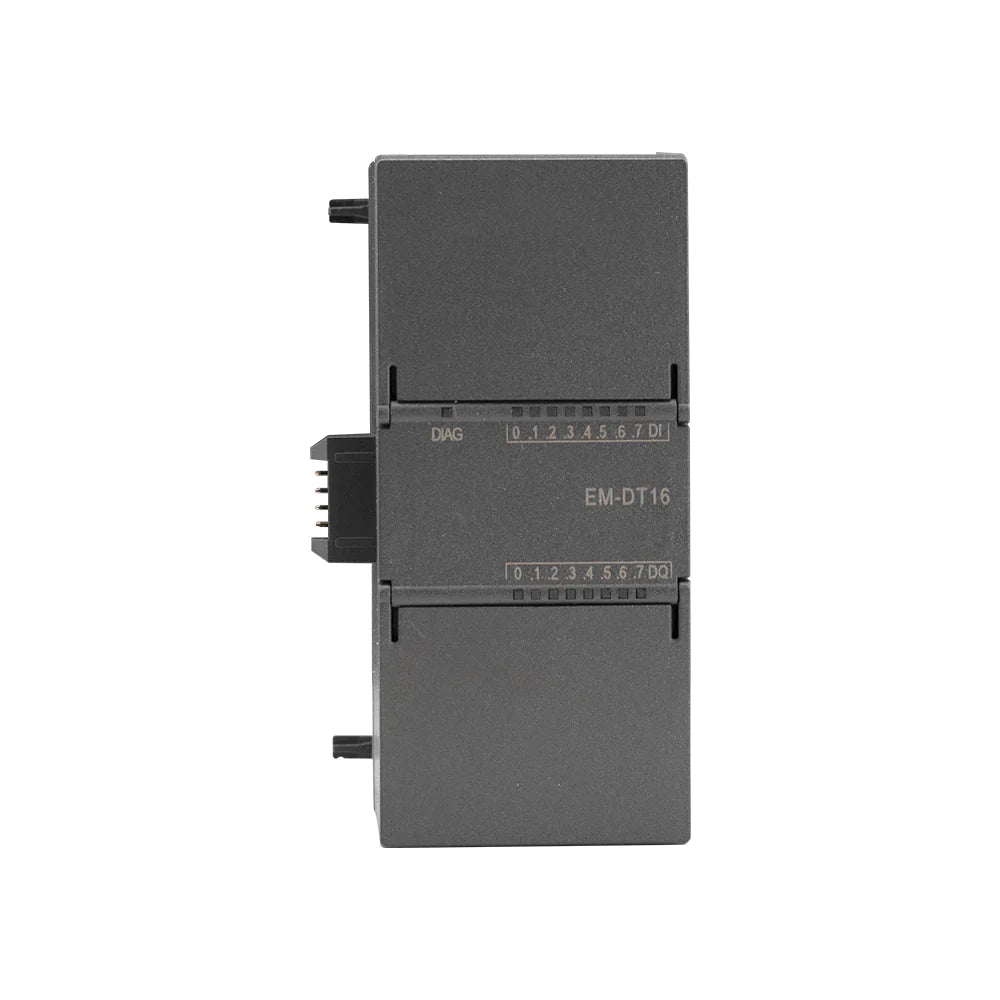

Side View
