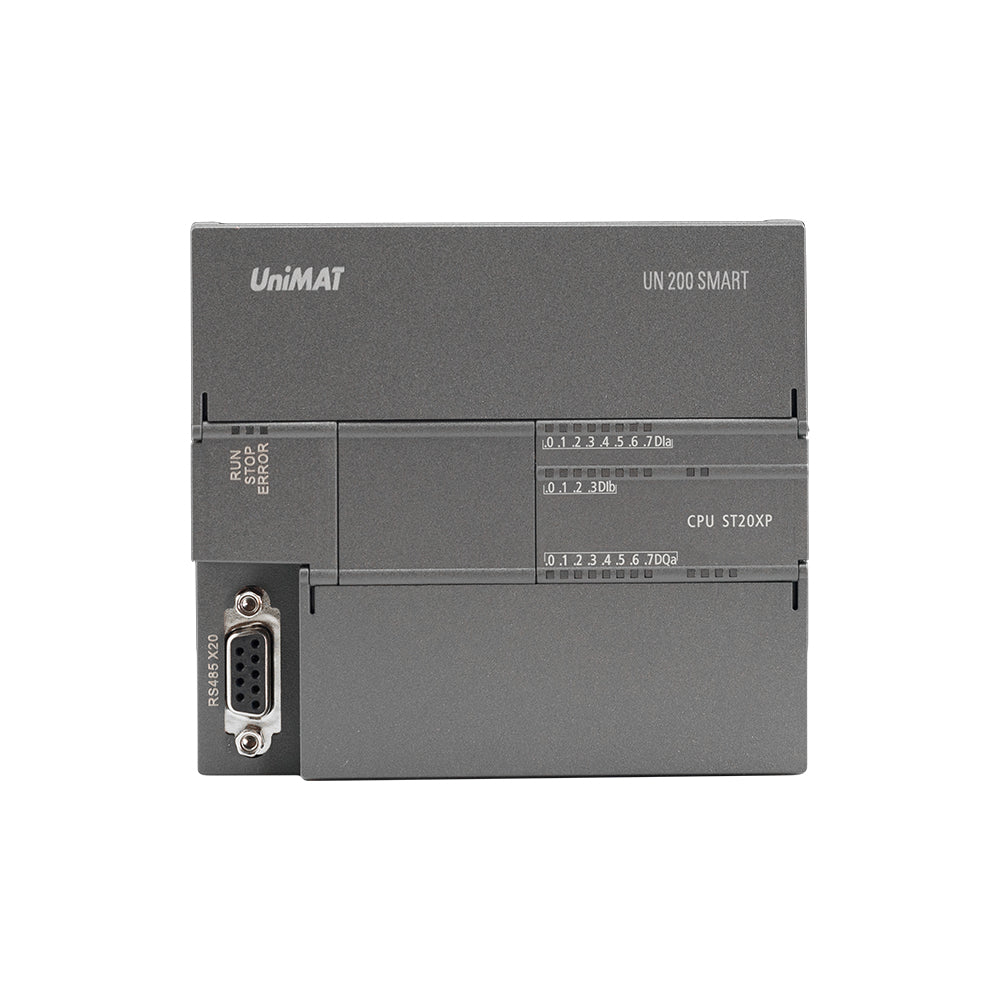

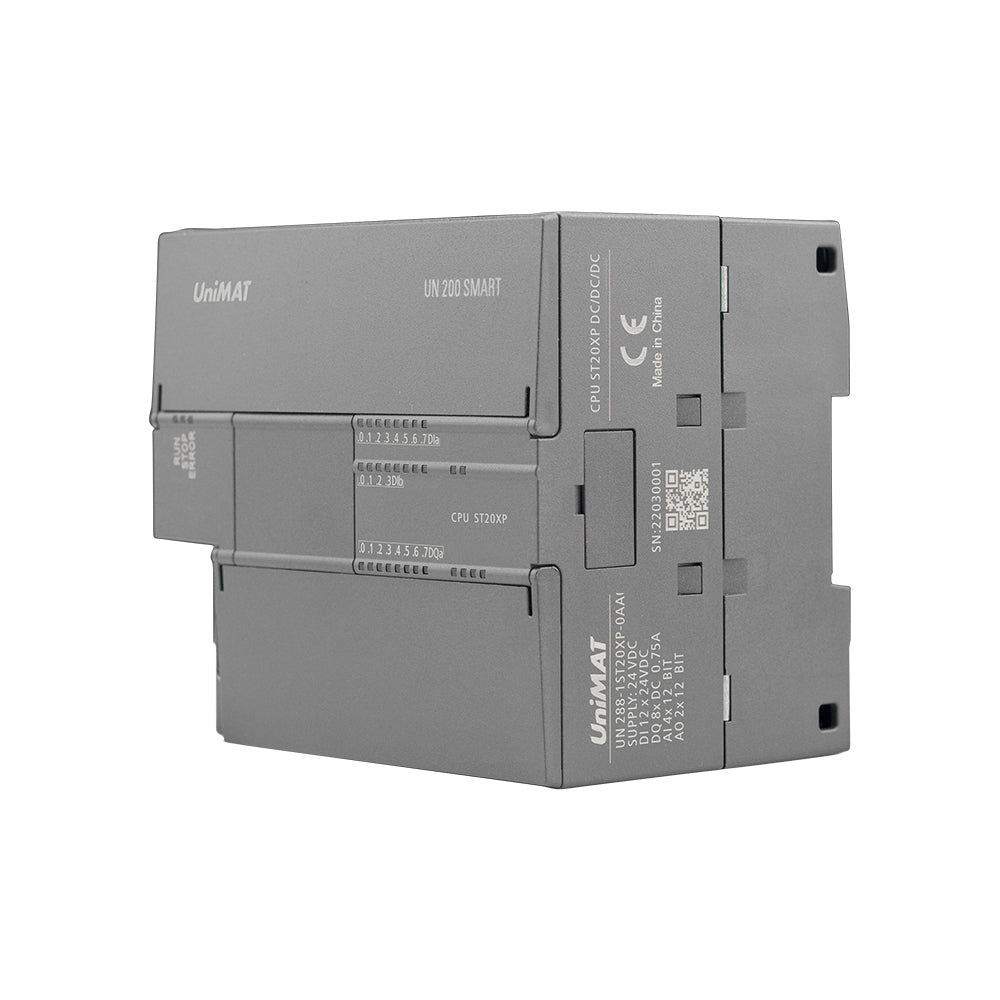

CPU ST20XP

UN 200 SMART PLC is a small PLC product with high performance, high integration and high cost performance independently developed by Evian Automation.

UN SMART PLC has different types of CPU modules with different I/O points. The single I/O points can reach up to 60 points. It has a powerful instruction set, rich communication and motion control functions, which can meet the needs of most small and medium-sized process control and Automation equipment needs.

Product feature
* Local integrated 20, 30, 40, 60 points.
* Max. Expanding 6 I/O modules 1 BD board.
* Local support 6 channels single-phase 200KHz, AB phase 3 channels 100KHz+ 20KHz high speed pulse output supports 3 channels 200KHz (transistor)
* Bool instruction, 200 times FOR cycles, scan cycle is 8ms.
* Local integrated 10M/100M automatic adjustment Ethernet port, support TCP, UDP, MODBUS TCP and upper communication.

The CPU has high speed processor, high speed inputs include 6*200kHz single phase + 4* 100kHz AB phase. High speed outputs have 3*200kHz (transistor), Supports Ethernet, 10M/100M self-adapting ethernet port. Supports TCP, UDP, MODBUS TCP and upper machine communication

General Technical Specification
Working Temp. -10ºC~60ºC(Hori.) -10ºC~40ºC(Verti)
Transport Temp. -20~80ºC
Humidity 5~95%, Non rh grade2, IEC60068-2
GND Type D grounding (grounding resistance: below 100 Ω) is not allowed to be grounded together with strong current system
Machine vibration level IEC61131-2
Protection level IP20
Application environment no corrosive or combustible gas, and the conductive dust (dust) is not serious
Application hight Below 2000m (it cannot be used under the environment of pressurization above atmospheric pressure, otherwise it may cause failure)
