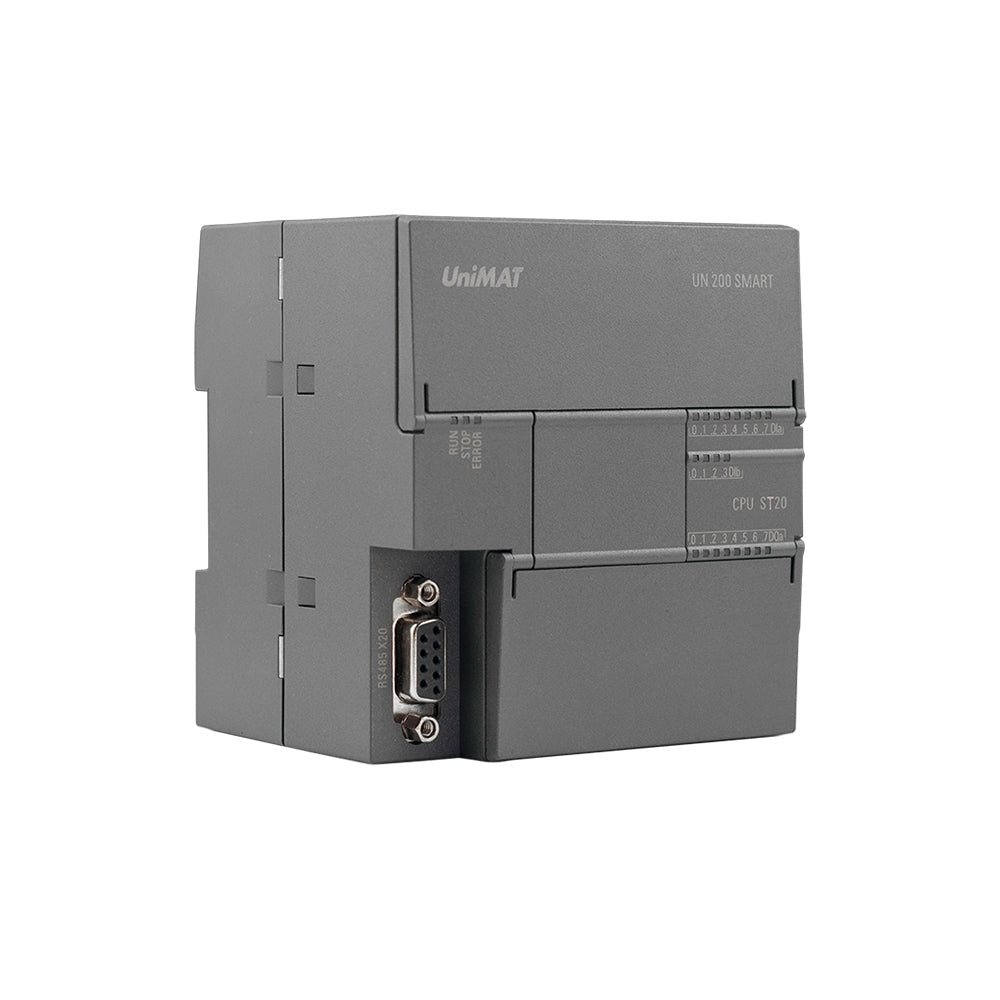

CPU ST20
UN 200 SMART PLC is a small PLC product with high performance, high integration and high cost performance independently developed by UniMAT Automation.
UN SMART PLC has different types of CPU modules with different I/O points. The maximum number of single I/O points can reach 60 points. Automation equipment requirements.
Product feature
* Local integrated 20, 30, 40, 60 points.
* Max. Expanding 6 I/O modules 1 BD board.
* Local support 6 channels single-phase 200KHz, AB phase 3 channels 100KHz+ 20KHz high speed pulse output supports 3 channels 200KHz (transistor)
* Bool instruction, 200 times FOR cycles, scan cycle is 8ms.
* Local integrated 10M/100M automatic adjustment Ethernet port, support TCP, UDP, MODBUS TCP and upper communication.
The CPU has high speed processor, high speed inputs include 6*200kHz single phase + 4* 100kHz AB phase. High speed outputs have 3*200kHz (transistor), Supports Ethernet, 10M/100M self-adapting ethernet port. Supports TCP, UDP, MODBUS TCP and upper machine communication
| Working Temp. | -10ºC~60ºC(Hori.) -10ºC~40ºC(Verti) |
| Transport Temp. | -20~80ºC |
| Humidity | 5~95%, Non rh grade2, IEC60068-2 |
| GND | Type D grounding (grounding resistance: below 100 Ω) is not allowed to be grounded together with strong current system |
| Machine vibration level | IEC61131-2 |
| Protection level | IP20 |
| Application environment | no corrosive or combustible gas, and the conductive dust (dust) is not serious |
| Application hight | Below 2000m (it cannot be used under the environment of pressurization above atmospheric pressure, otherwise it may cause failure) |
